5V Boost Converter

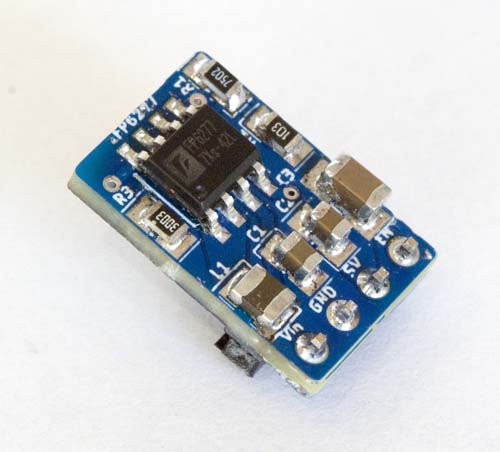

FP6277 Boost Converter

Board Layout

This is an implementation of the Design by Gerrit Niezen (on Tindie as Embedded Loop)— Project Details— using 0805 components, for little more reason than that's what I had at hand, although the larger components are a little bit easier to work with when soldering by hand.

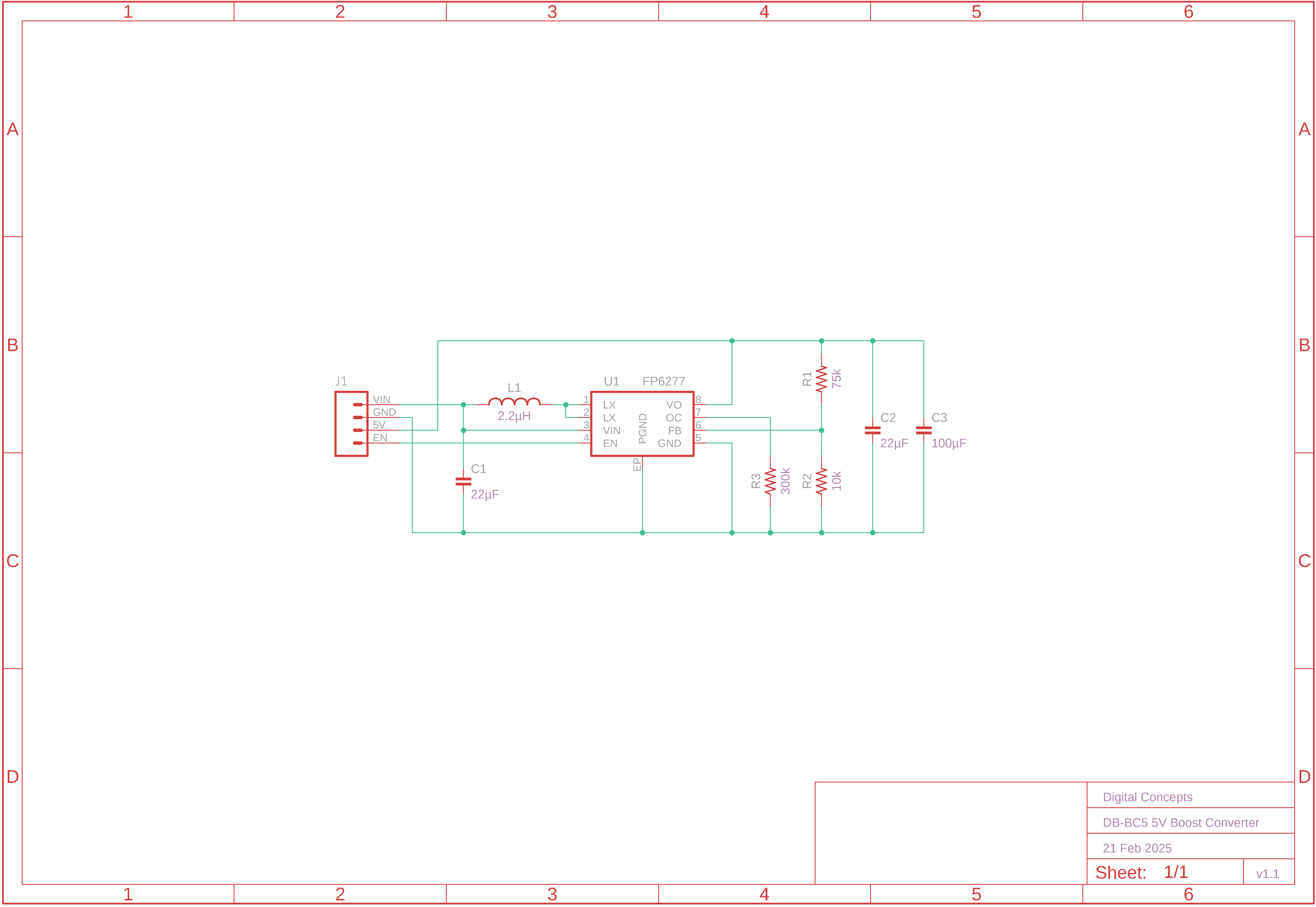

5V Boost Converter Schematic

5V Boost Converter Schematic
TopBottom

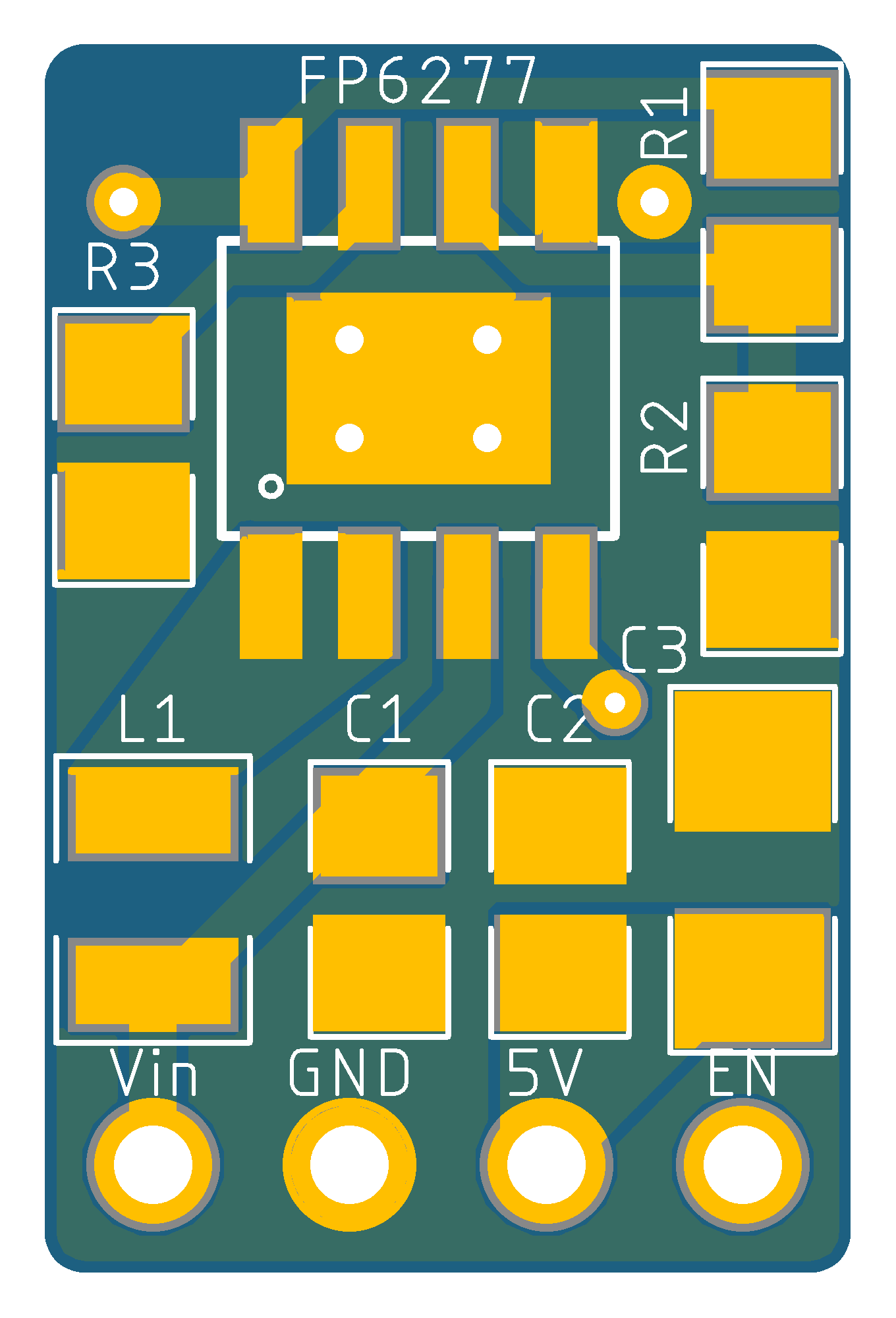

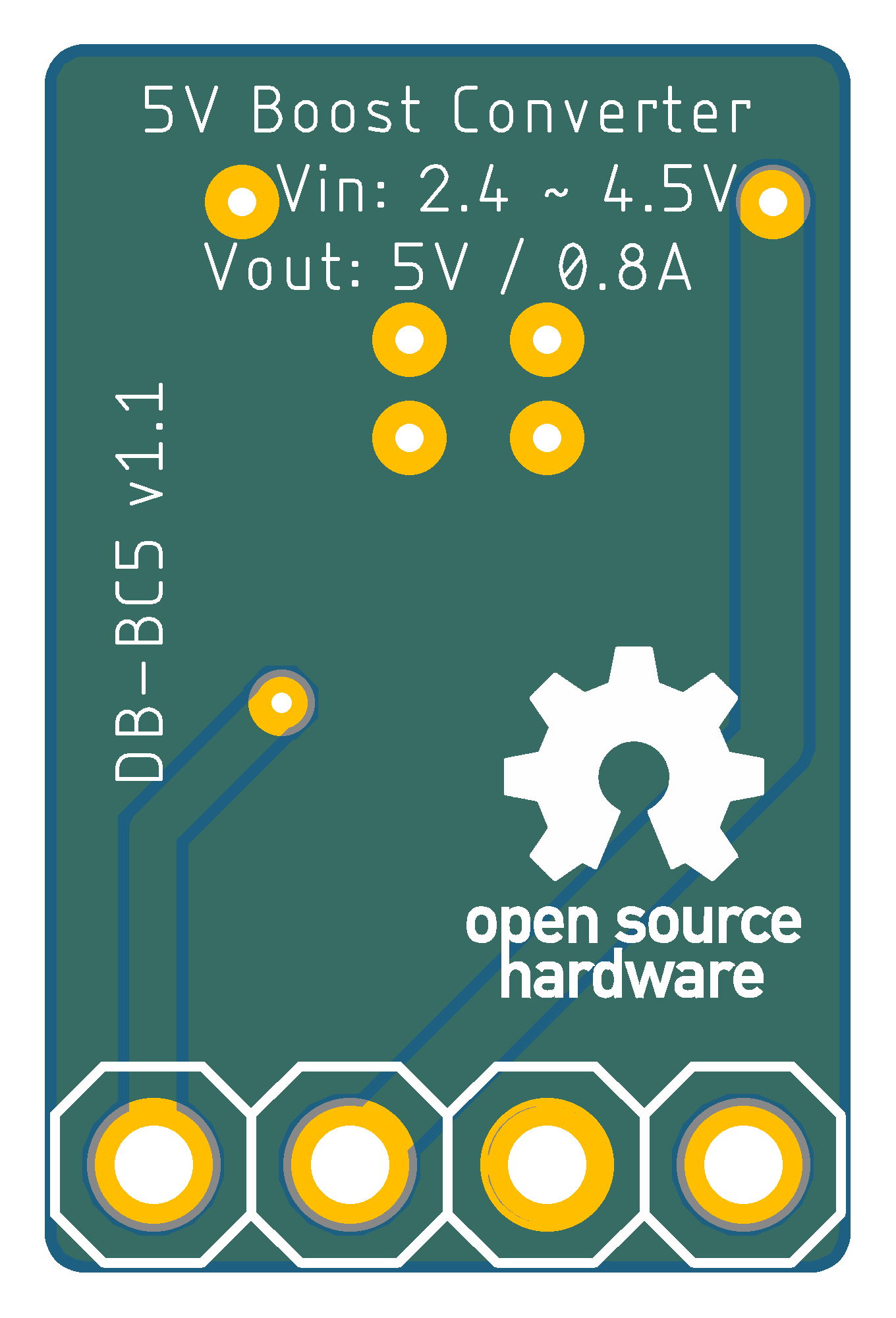

5V Boost Converter PCB (Top) 5V Boost Converter PCB (Bottom)
5V Boost Converter PCB
PDF 5V Boost Converter Eagle CAD Files [25 KB]
PDF 5V Boost Converter CAM Files [54 KB]
01-04-2025
