LoRa Gateway & Sensor Nodes

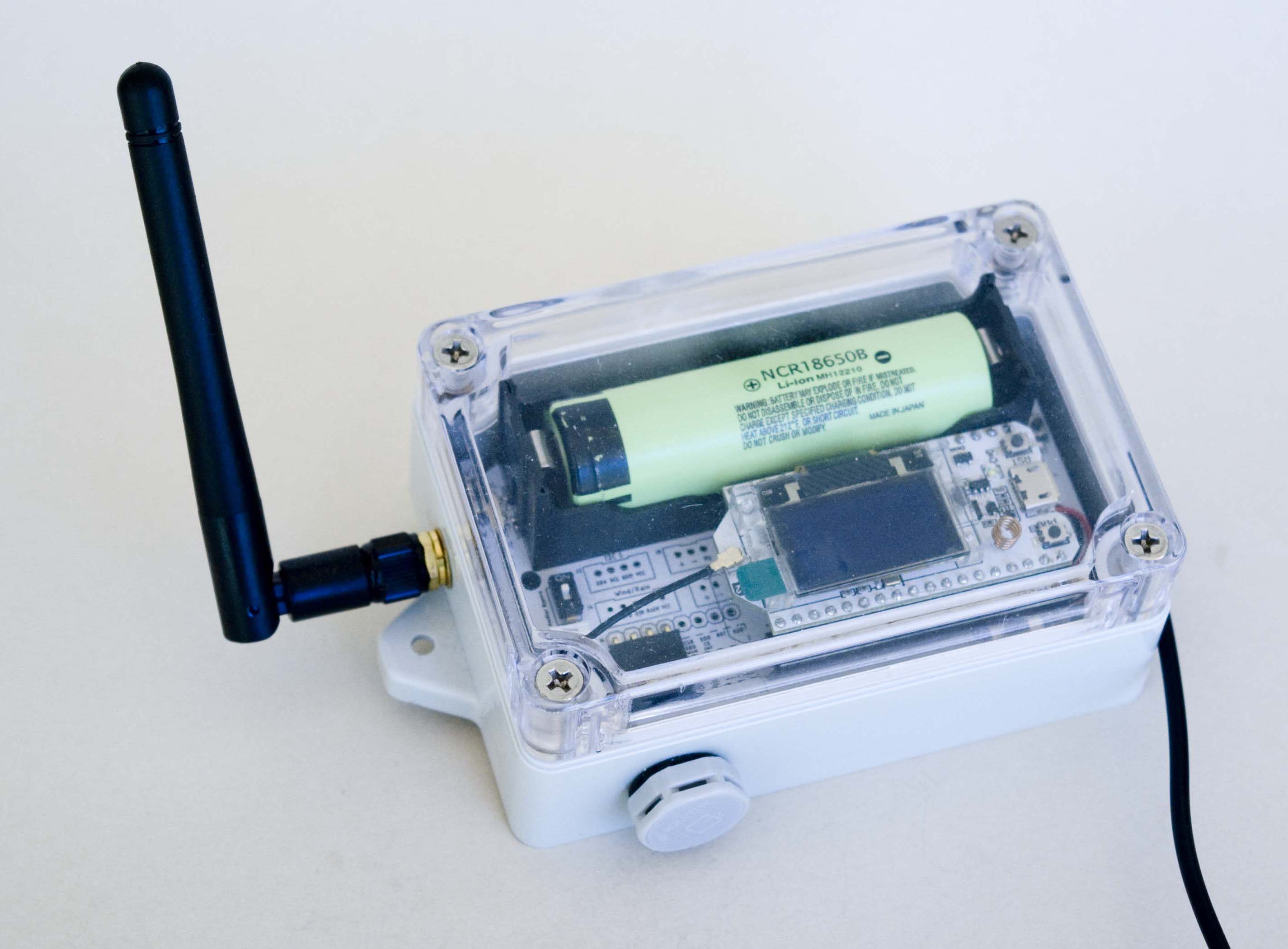

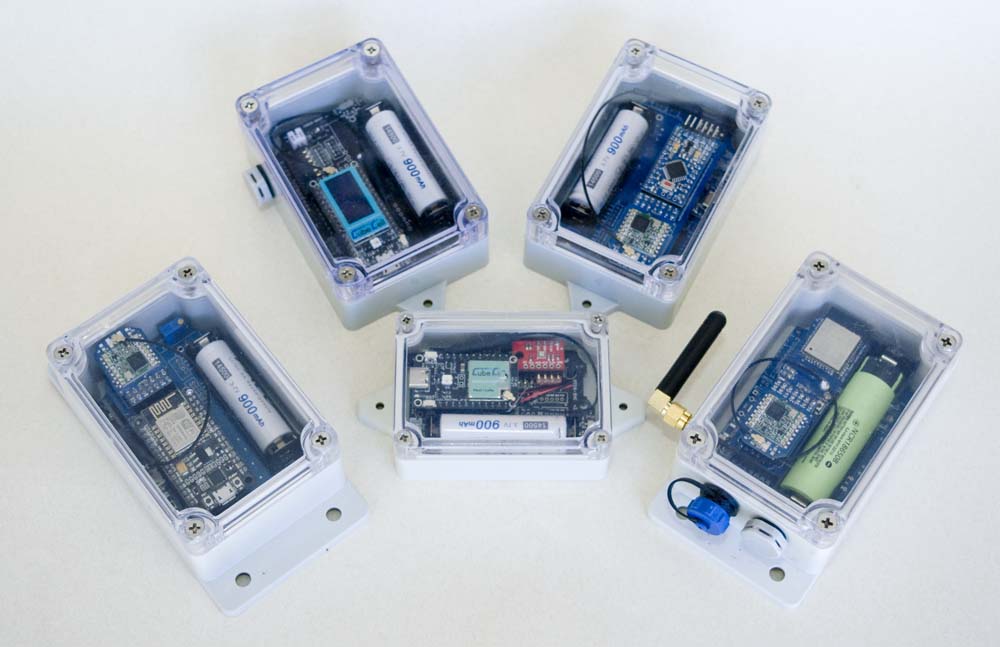

While discussion in these pages often refers to Gateway Nodes and Sensor Nodes, or just Gateway and Nodes, all are developments of the same base hardware platform—a solar/battery powered parent board capable of supporting one or more processor board options. My Gateway platform pretty quickly converged on an ESP32-based option, because these provided convenient support for both LoRa and WiFi connectivity. The configuration of Sensor Nodes was more flexible, with application requirements often satisfied by any of the available options.

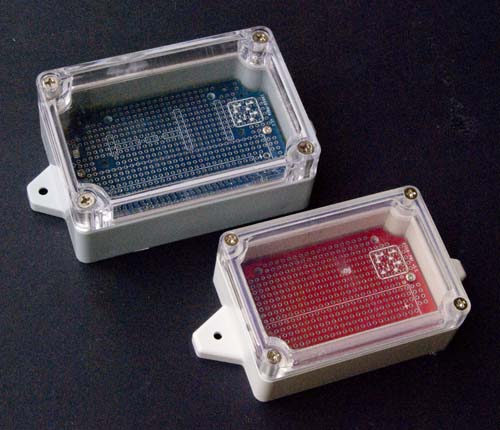

All of the Nodes originally described herein were based on PCBs that are developments of the prototyping boards described elsewhere on this site and designed specifically to fit within two common, off-the-shelf enclosures.

Node Enclosures

As mentioned elsewhere, I started out with a relatively arbitrary goal to create a 'node' for under A$25 and I've almost achieved that with my prototypes. The components for a workable Arduino Pro Mini configuration come in at A$25.14, for an ESP-12F configuration A$26.44, and for an ESP32 configuration A$27.64, although I must confess that these costings don't include postage for the individual components used, which could double those prices depending on the quantities purchased. None of these options, however, provides an ideal solution for my own application—the ESP processors are not very 'battery friendly', the ESP-12F has only a single analog channel, and the Pro Mini is somewhat memory limited—so I will keep looking at other processor configurations. In that regard, the ARM Cortex architecture of the Heltec CubeCell and Seeed LoRa-E5 looks promising.

Either way, using a larger (100x68) enclosure adds another A$1.11 to the cost of a node, including DIP switches rather than just solder jumpers another A$0.40, a regulator A$0.13, current monitor A$0.50, the boost converter A$0.47, and so on. All of these, and a range of sensors, can be added as options to any configuration.

More recent applications have also made use of both larger and smaller enclosures, and these are discussed in more detail in descriptions of the relevant applications.
