63 × 58 Boards

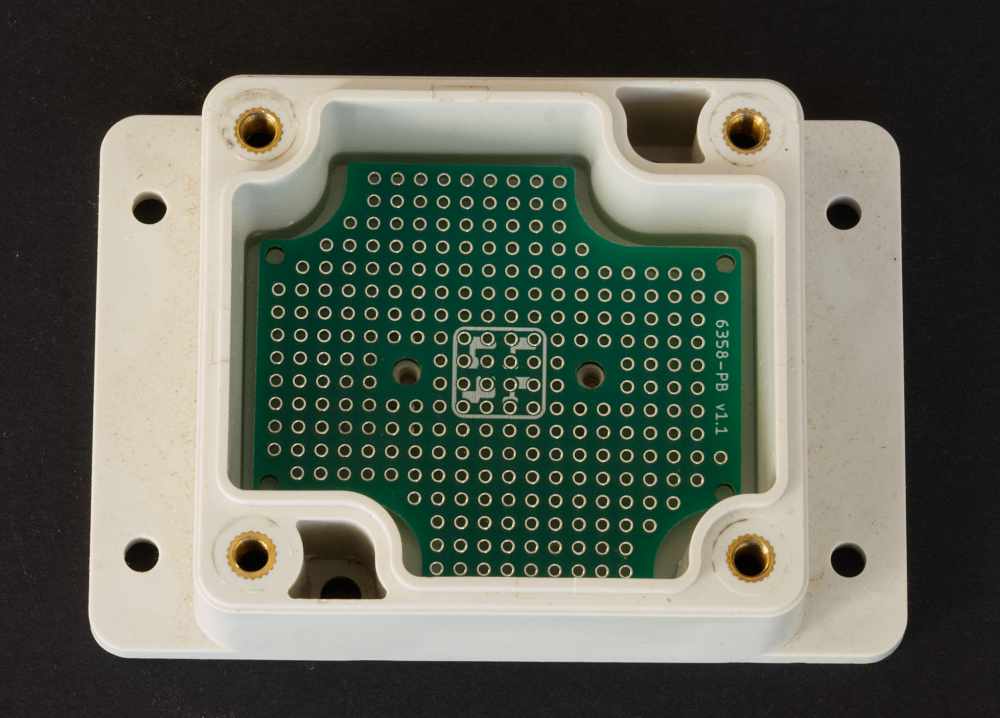

63 x 58 Waterproof Enclosure with PCB

I haven't really done anything with the 63 x 58 enclosure other than creating a couple of basic prototyping boards comprising my usual 100mil pad matrix and 'stack' standoff mount points.

[6358-PB] Simple Prototyping Pad Matrix

This board neatly occupies the available space within the enclosure.

TopBottom

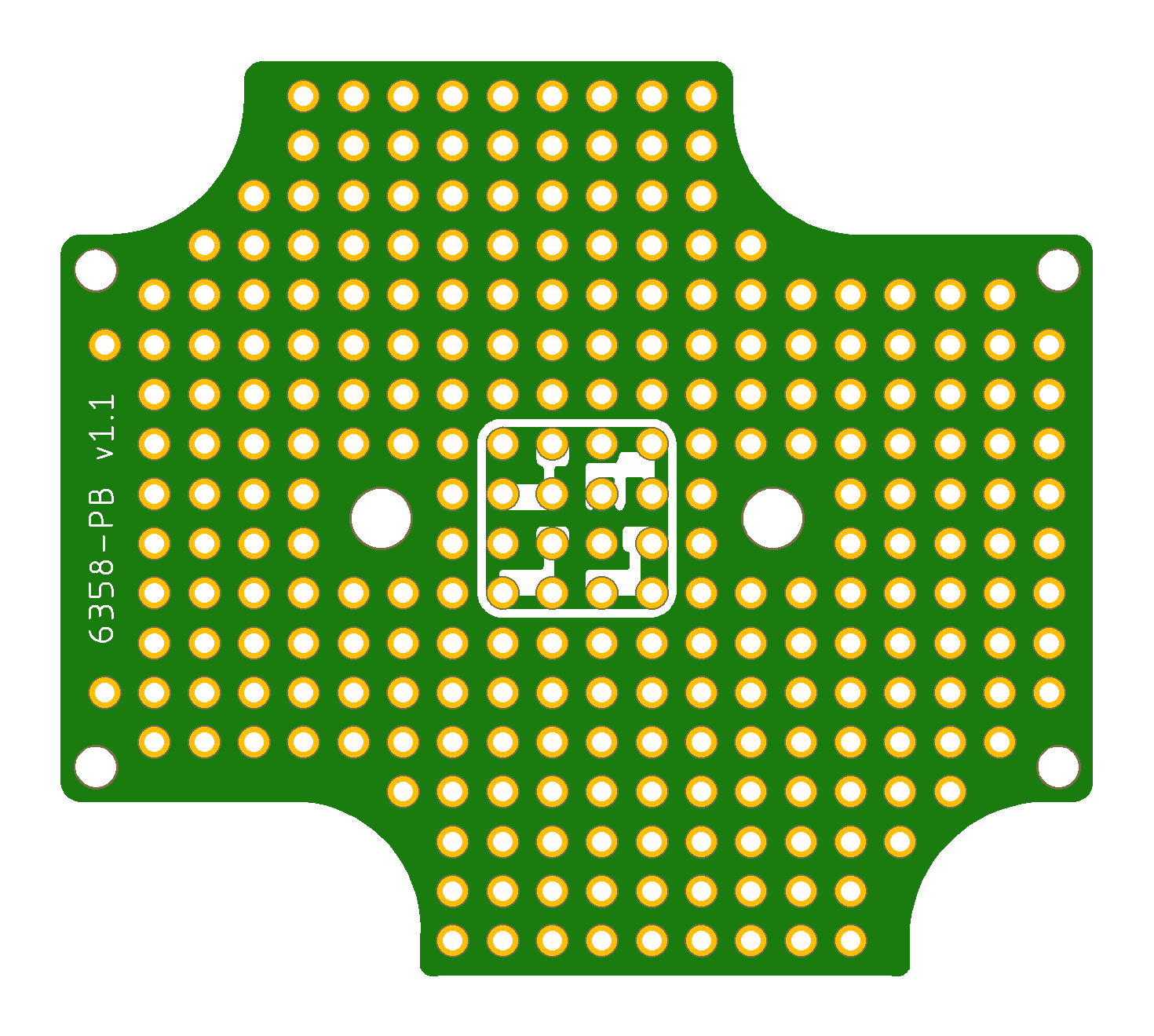

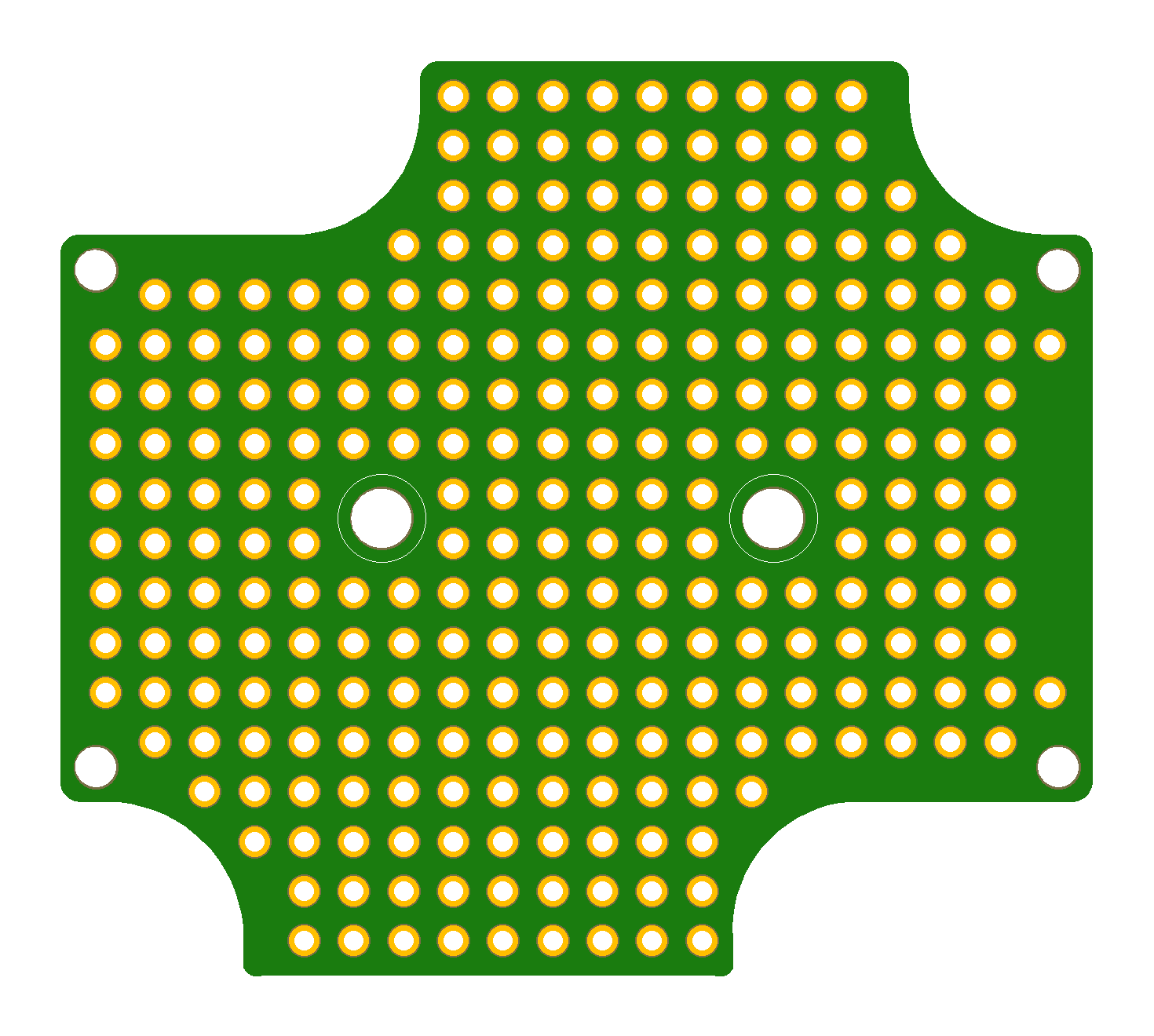

63x58 Enclosure PB PCB (Top) 63x58 Enclosure PB PCB (Bottom)
6358-PB PCB
ZIP 6358-PB Eagle CAD Files [18 KB]
ZIP 6358-PB CAM Files [31 KB]
[6358-PBC] Even More Simple Prototyping Pad Matrix

This board occupies just the central part of the enclosure, leaving a bit of space for external connectors in the enclosure 'wings'.

TopBottom

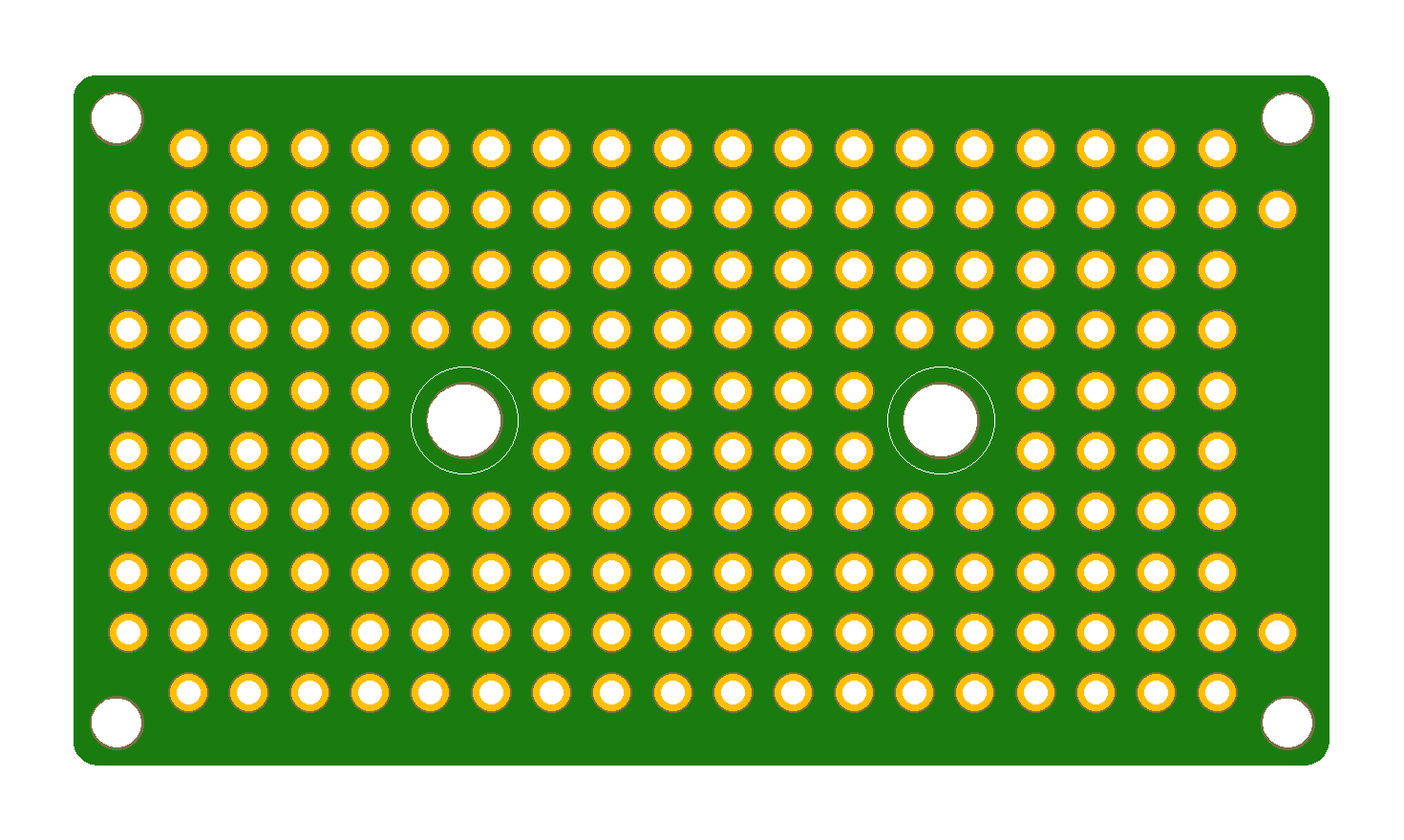

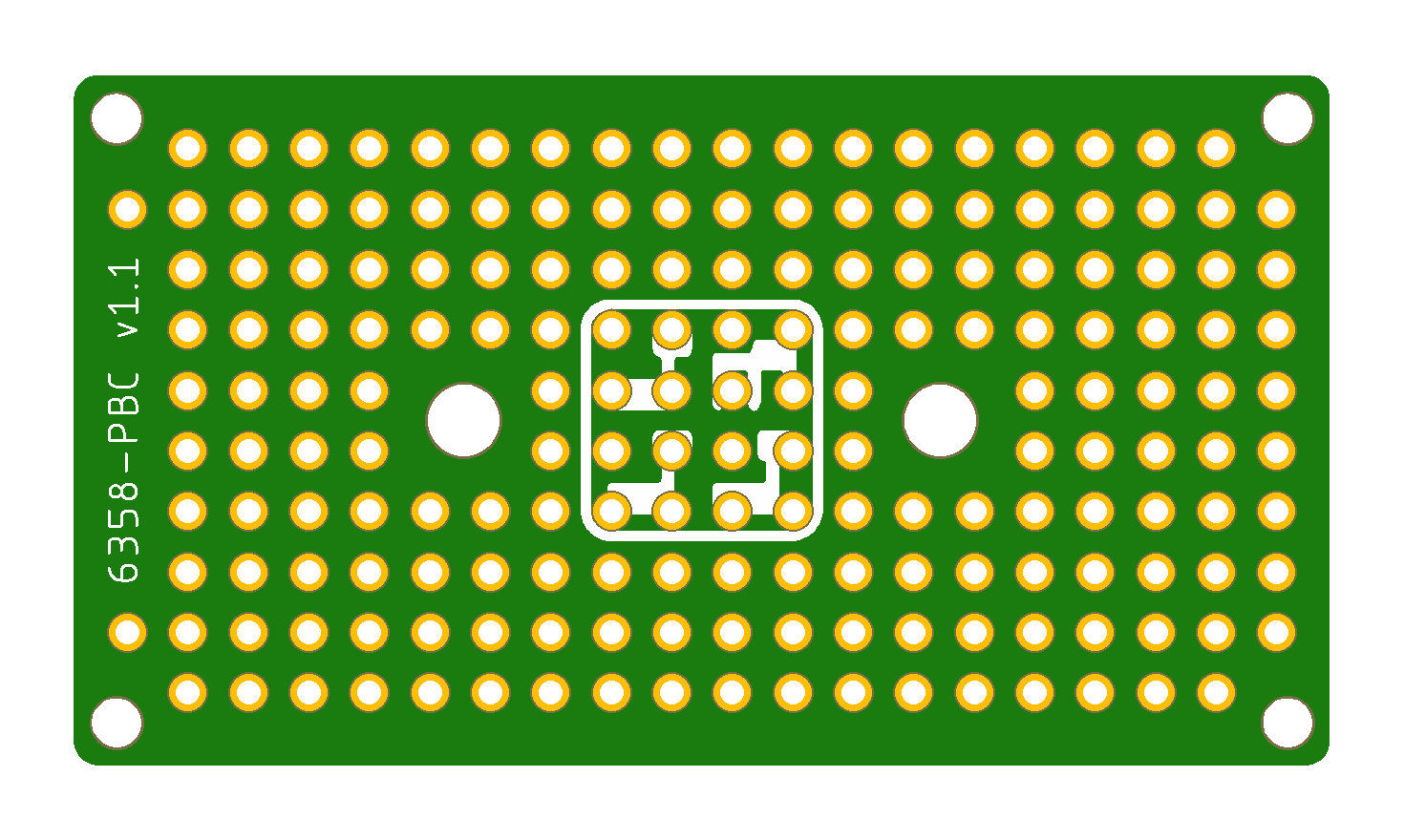

63x58 Enclosure PBC PCB (Top) 63x58 Enclosure PBC PCB (Bottom)
6358-PBC PCB
ZIP 6358-PBC Eagle CAD Files [16 KB]
ZIP 6358-PBC CAM Files [30 KB]
