I did initially design a prototyping board for the smaller, 95 × 65 enclosure, but the board arrangement for my pump controller application, which uses the larger 130 × 95 enclosure, has been designed for that specific purpose from the outset. That application is described elsewhere on this site and the present description is confined simply to that of the PCBs involved.

[9565-PB] Simple Prototyping Pad Matrix

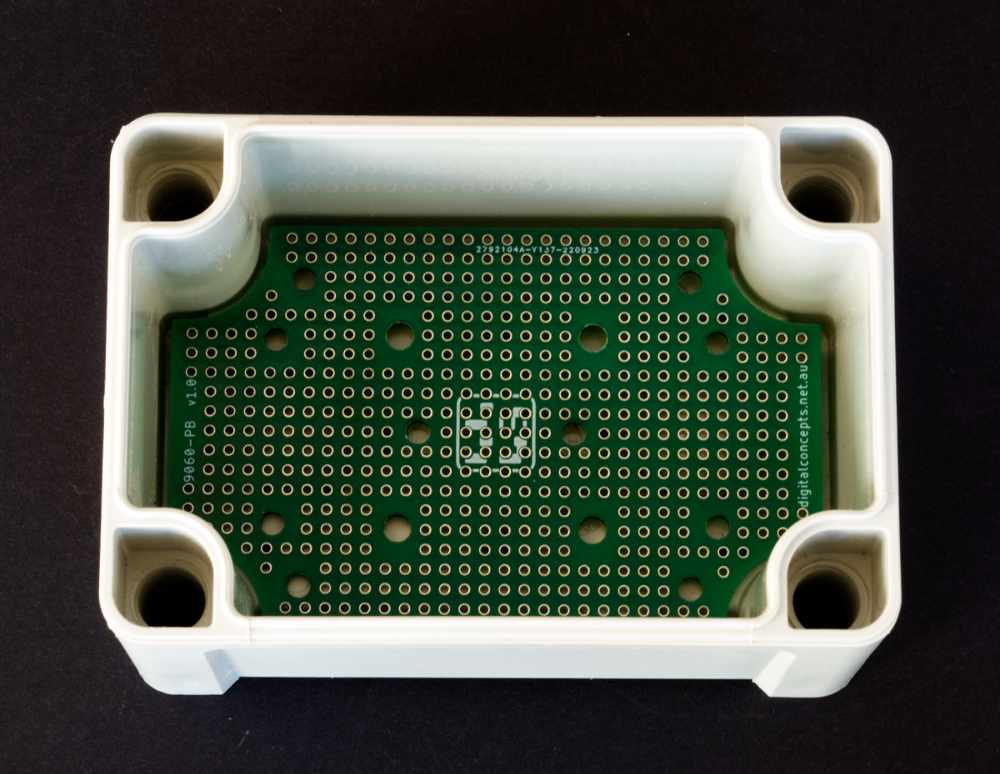

This board neatly occupies the available space within the enclosure. The various holes are located to allow fixing to the mount points within the enclosure, stand-offs for 'sandwich' arrangements, and for DIN rail mounting options. This is very much a prototyping board that provides a template, particularly for the various mounting holes, for subsequent board designs.

TopBottom

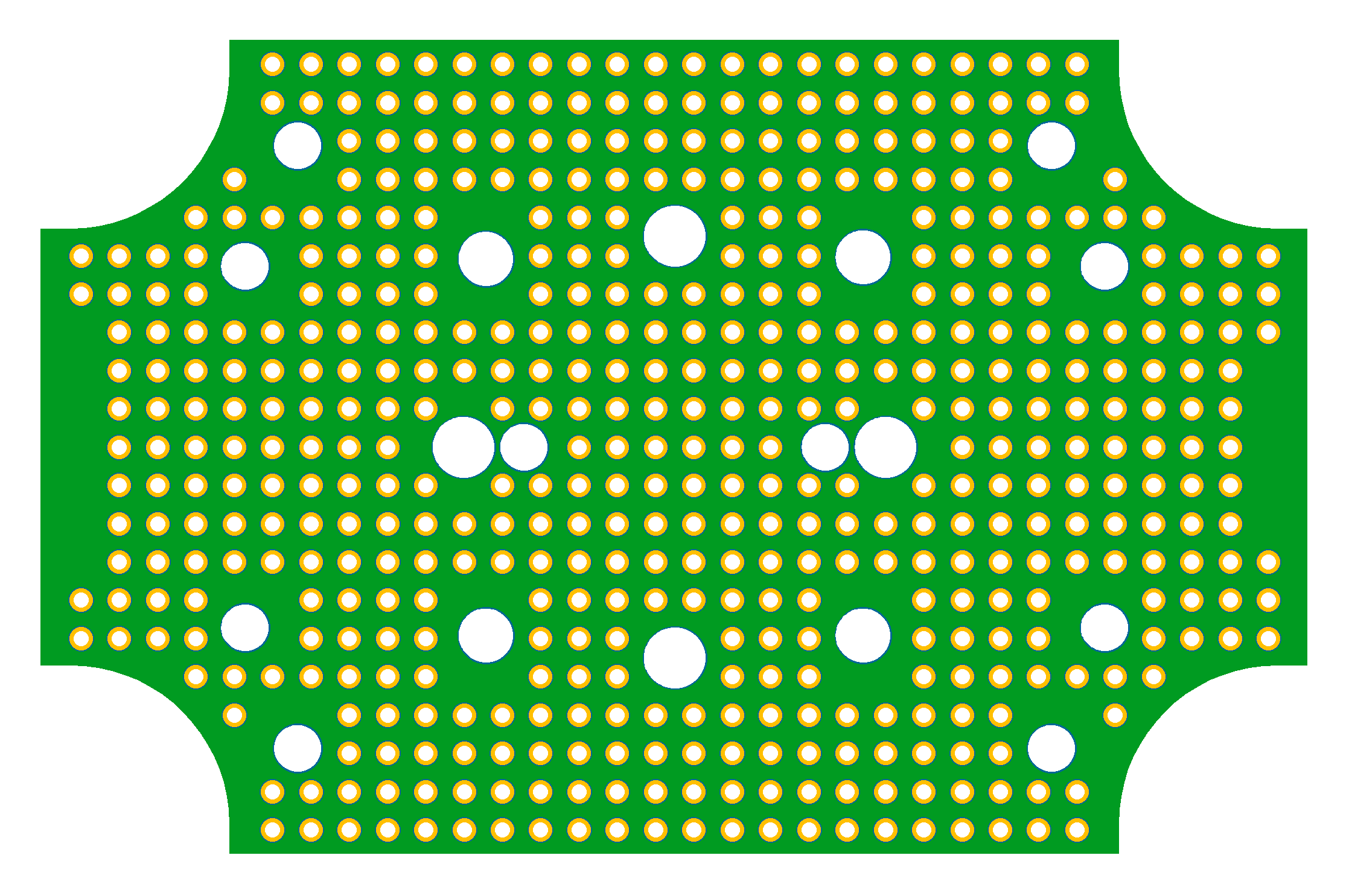

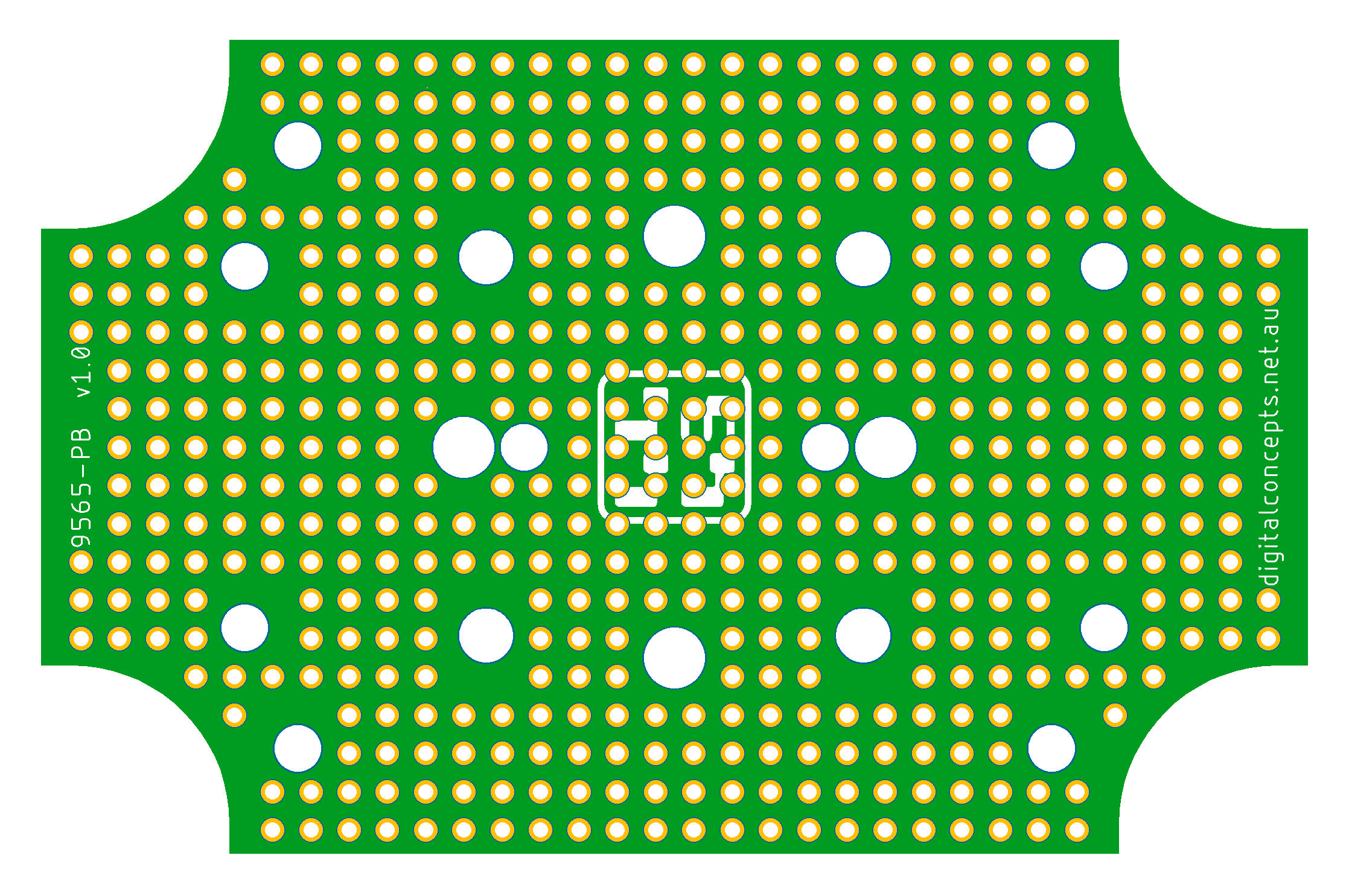

95x65 Enclosure PB PCB (Top) 95x65 Enclosure PB PCB (Bottom)
9565-PB PCB
ZIP 9565-PB Eagle CAD Files [22 KB]
ZIP 9565-PB CAM Files [45 KB]
