85 × 58 Boards

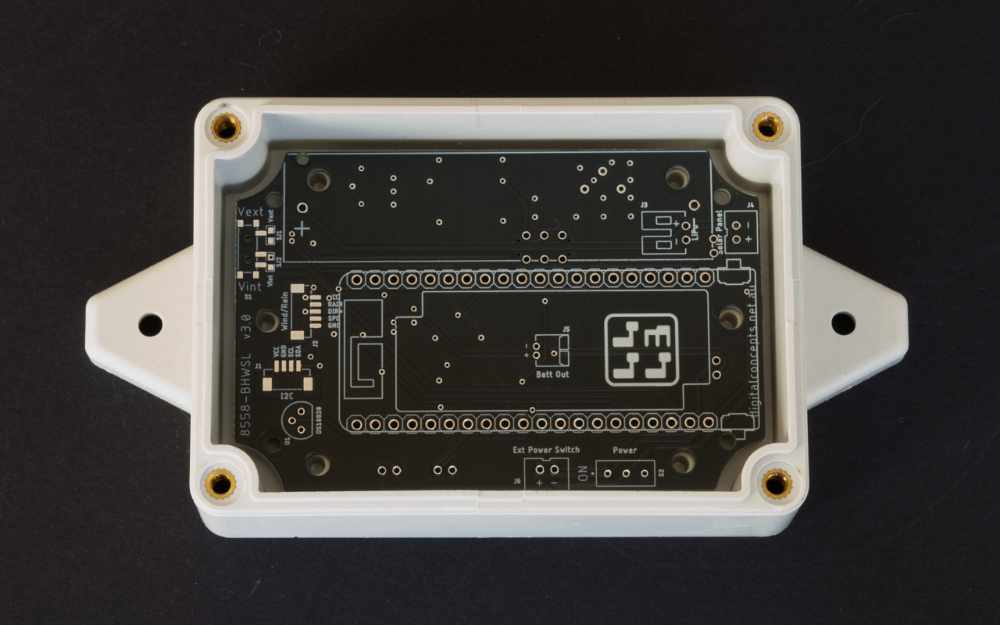

85 x 58 Enclosure PCB

The following is a selection of the 85 × 58 (more recently also being advertised as 83 × 58) enclosure boards that I currently use, or have used to date.

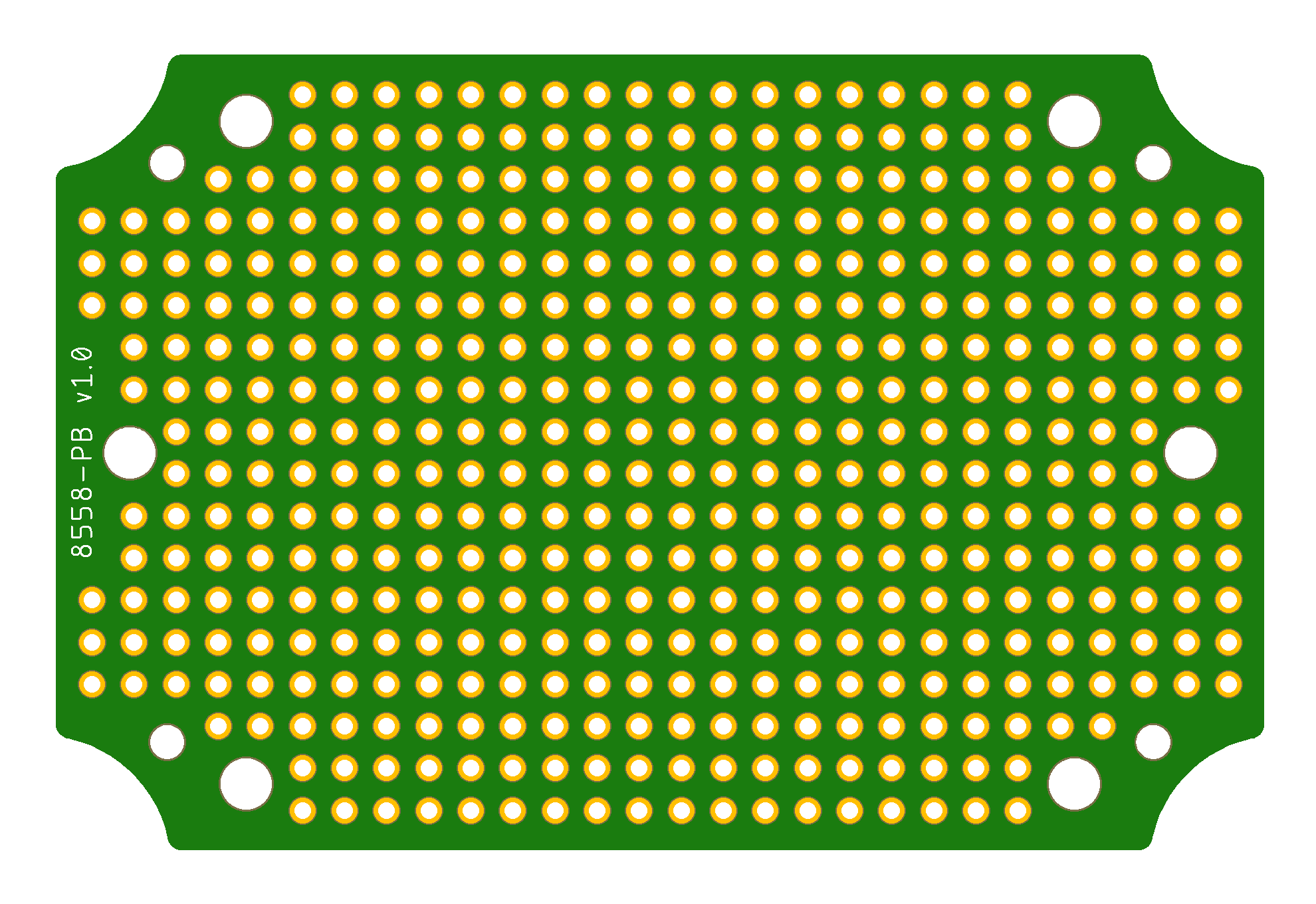

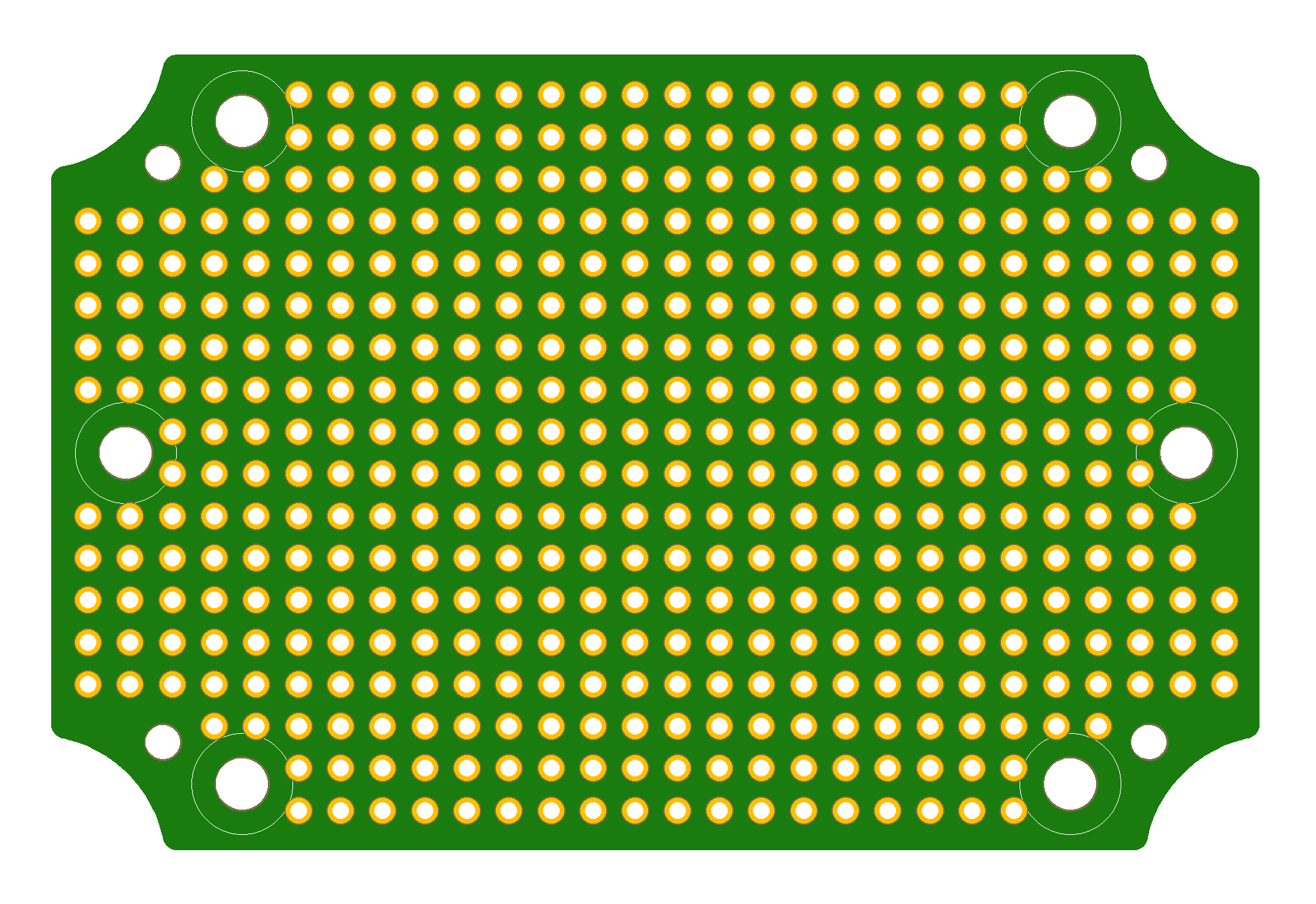

[8558-PB] Simple Prototyping Pad Matrix

Top	Bottom

8558-PB PCB

8558-PB Eagle CAD Files

[35 KB]

8558-PB CAM Files

[166 KB]

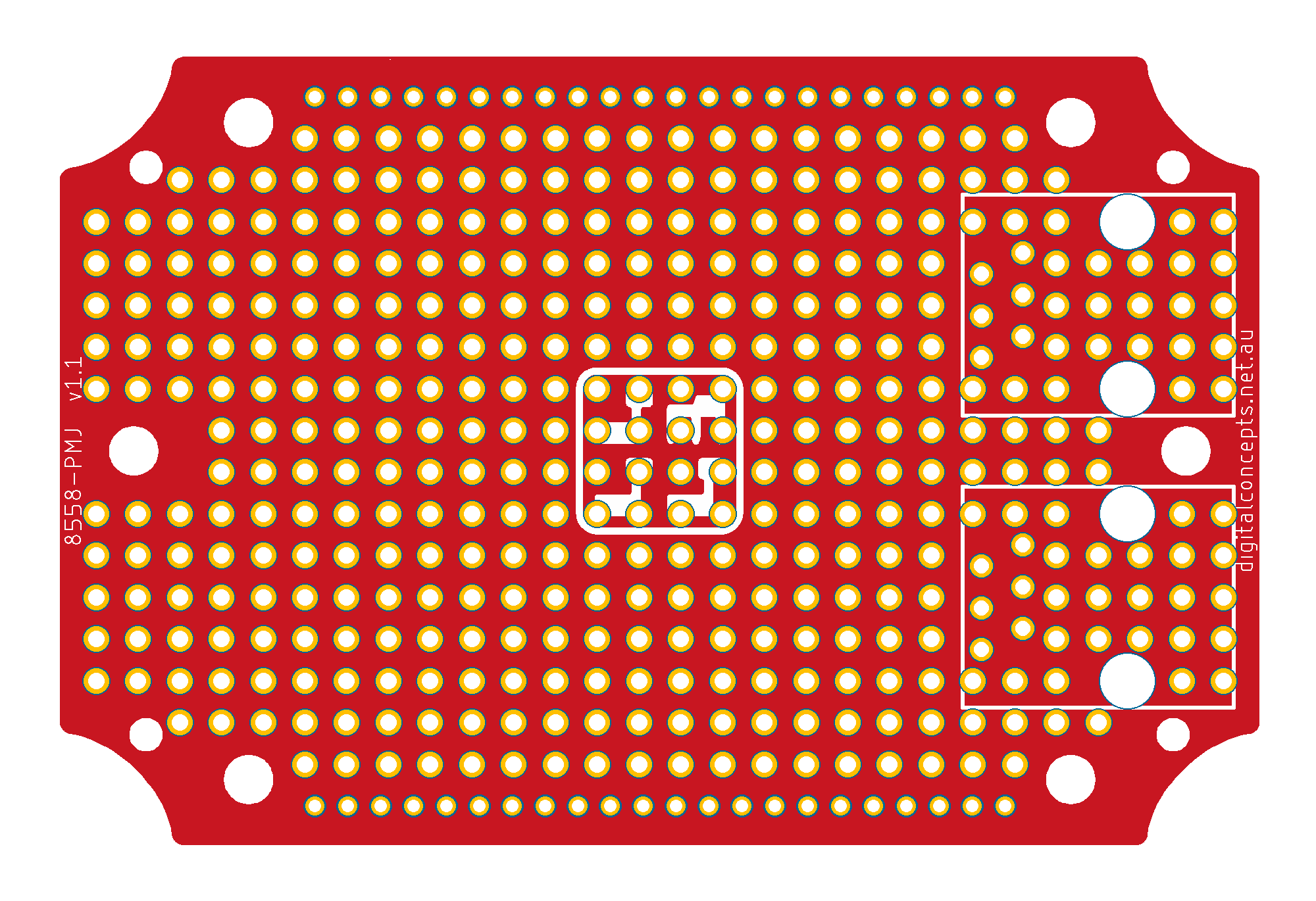

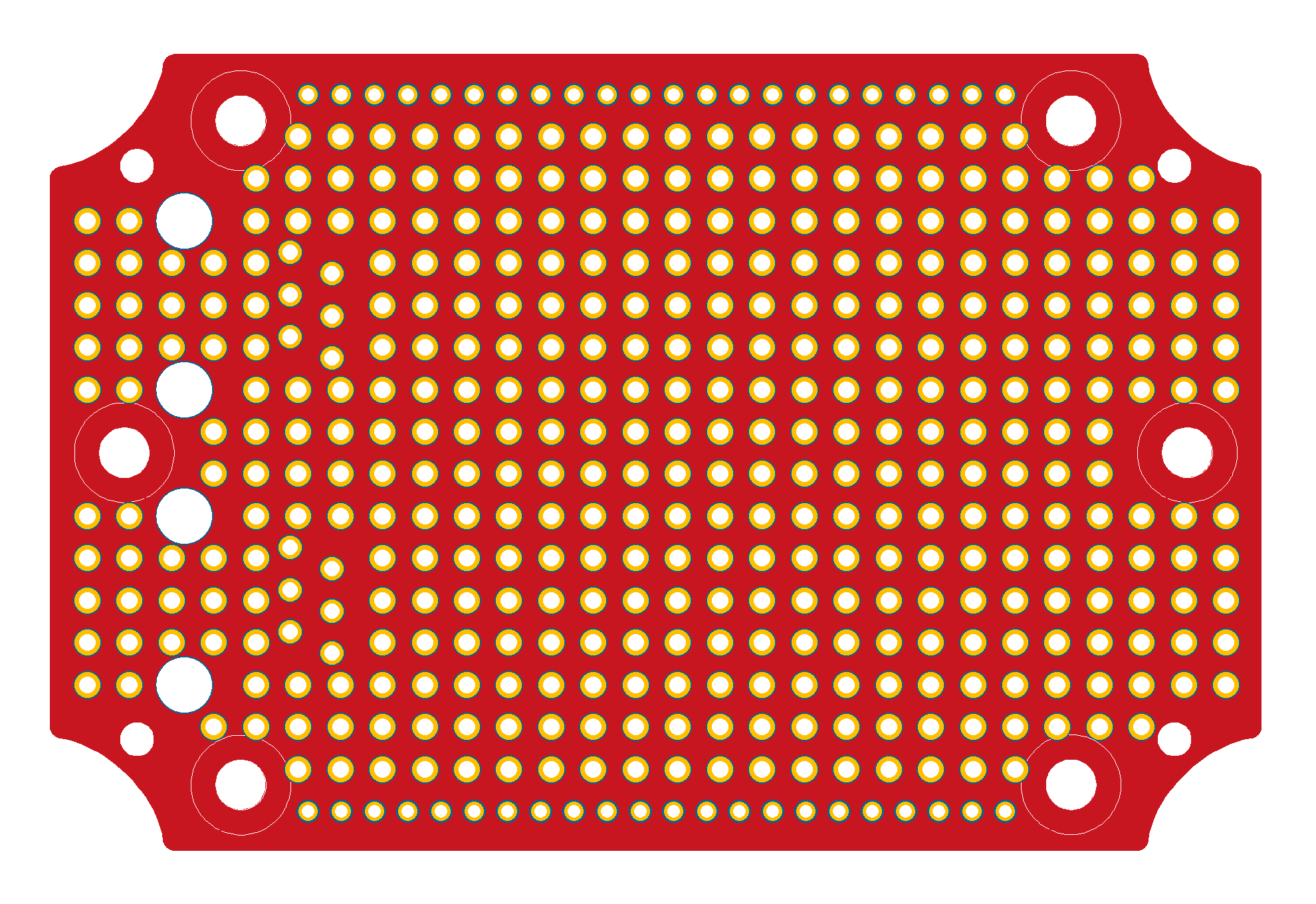

[8558-PMJR] PH2.0 (JST) and RJ11 (vertical) Mounts

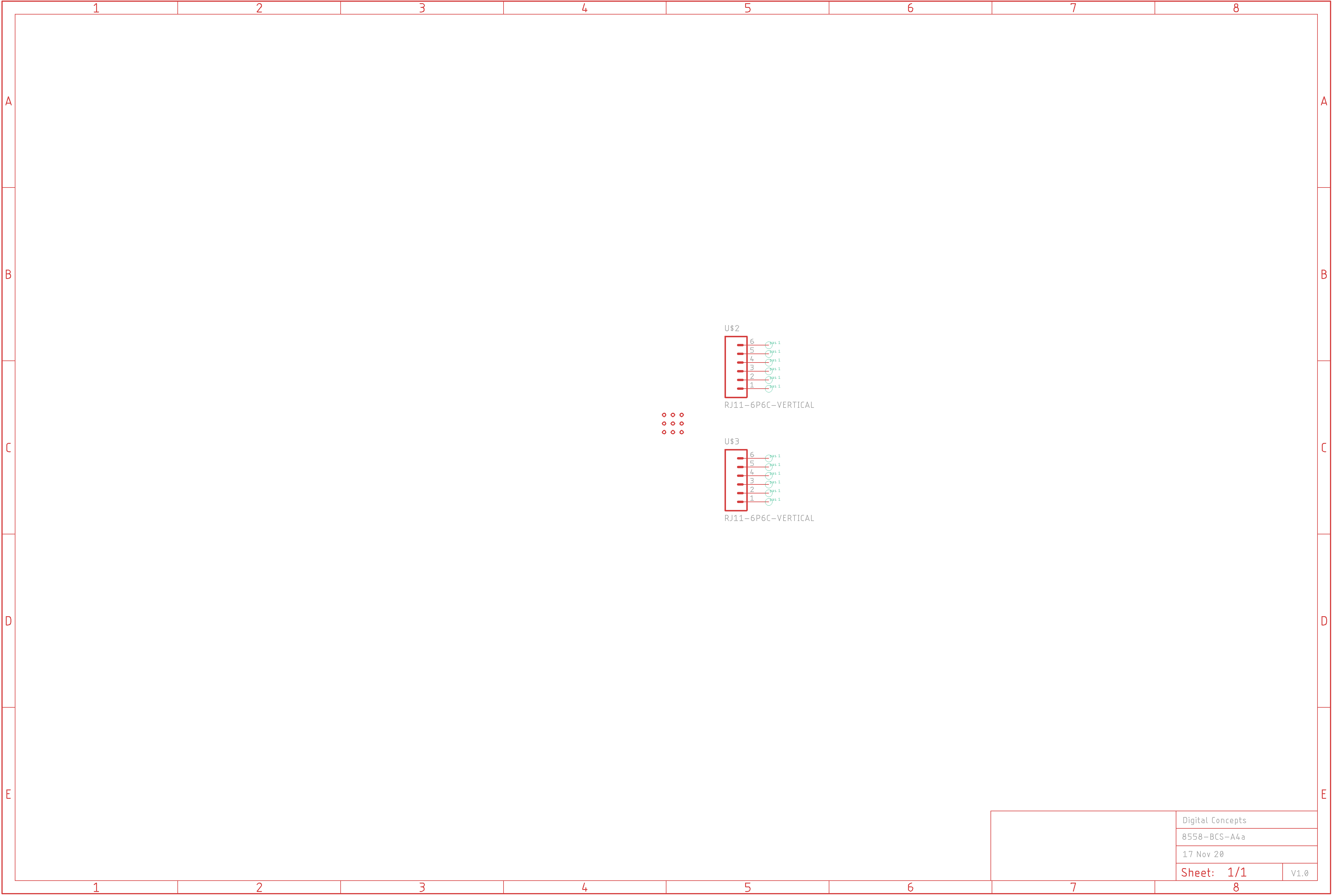

Board schematic

Top	Bottom

8558-PMJR PCB

8558-PMJR Eagle CAD Files

[45 KB]

8558-PMJR CAM Files

[55 KB]

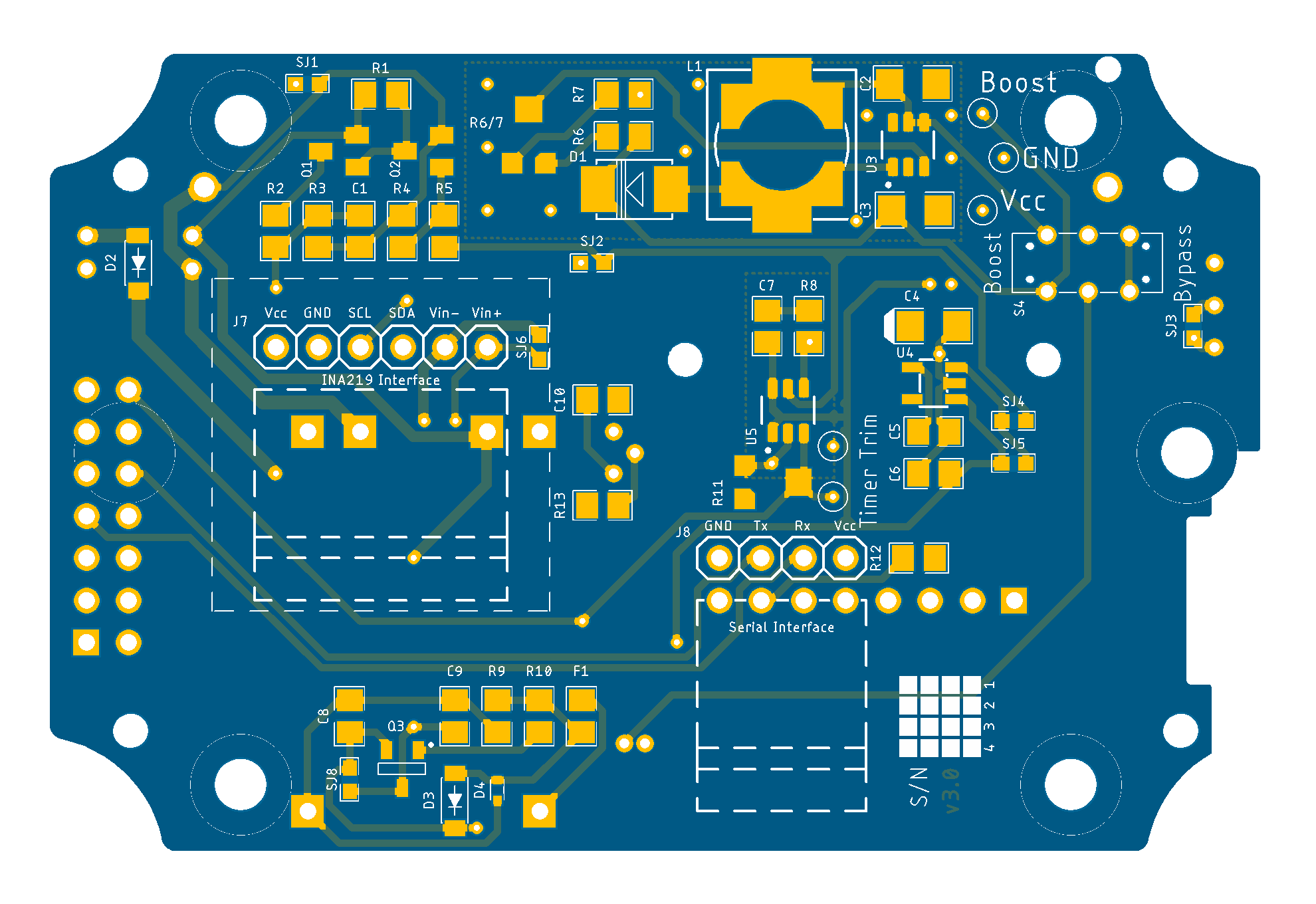

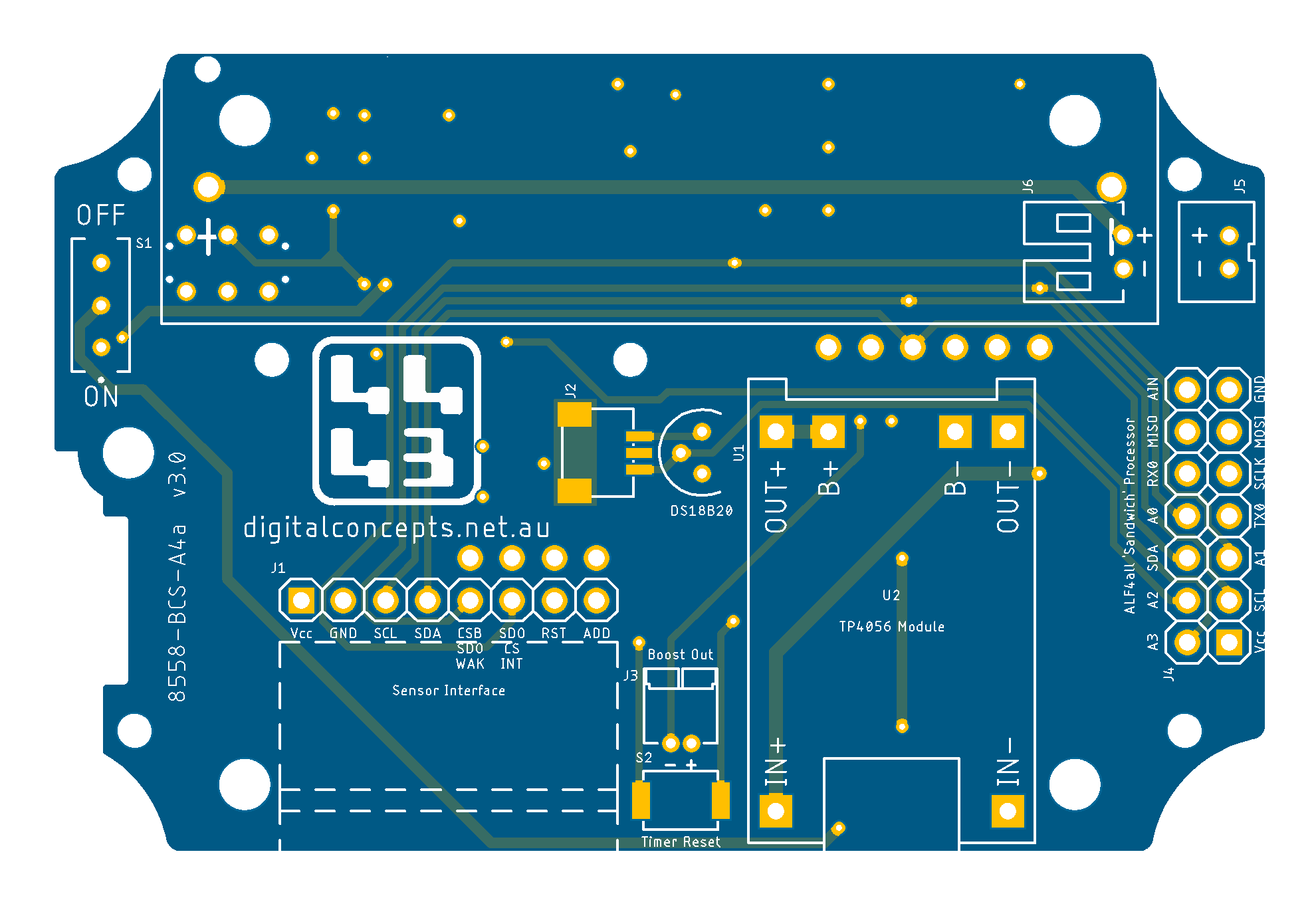

[8558-BCS-A4a] IoT Node Power/Sensor Prototyping Board

This board is a cut-down version of the 10068-BCS-A4a board described above. Due to the reduced size, it does not include all of the options provided on the larger board and those that are provided must be configured through solder bridges rather than DIP switches.

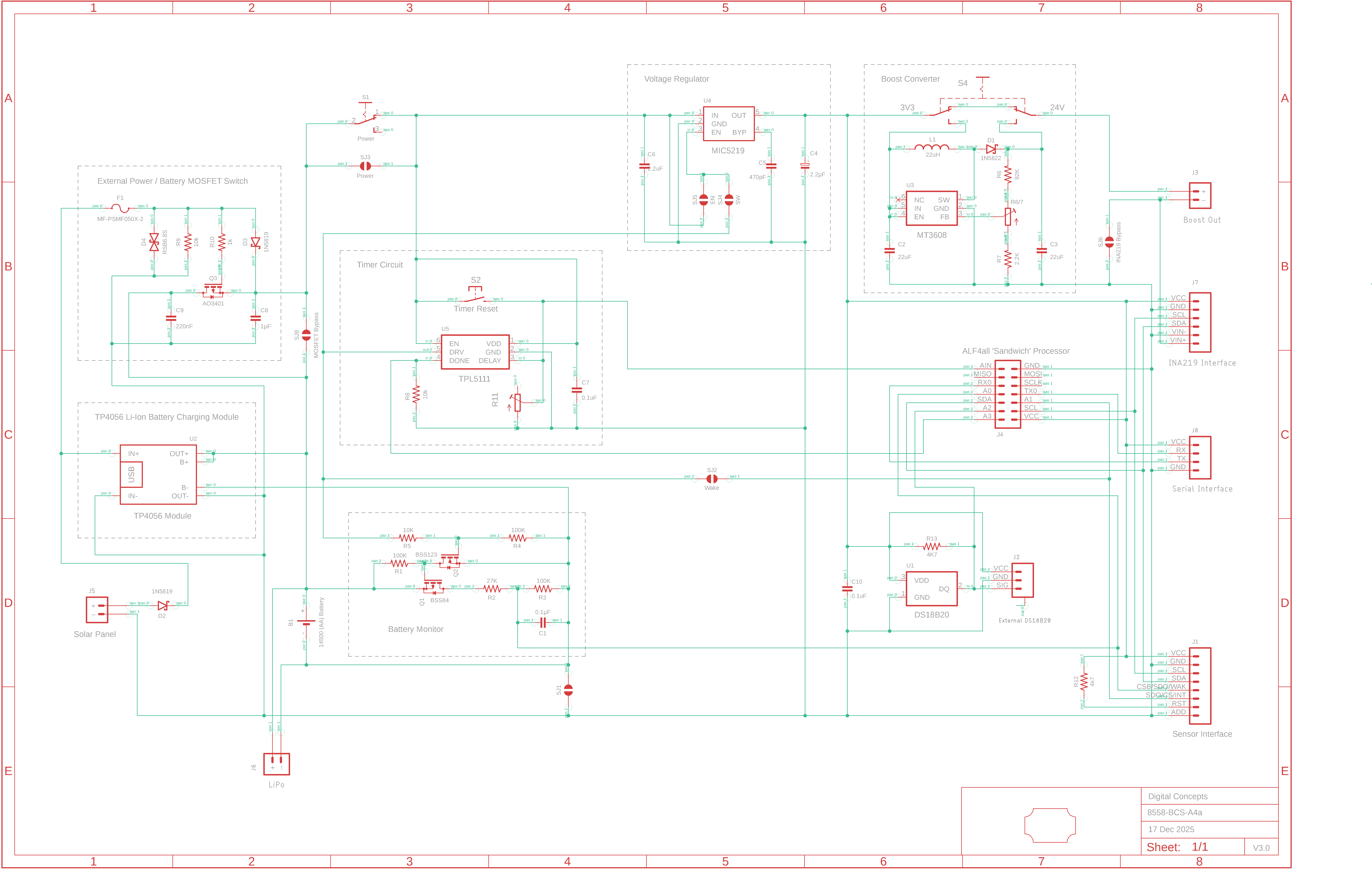

Board schematic

Top	Bottom

8558-BCS-A4a PCB

8558-BCS-A4a Eagle CAD Files

[58 KB]

8558-BCS-A4a CAM Files

[417 KB]

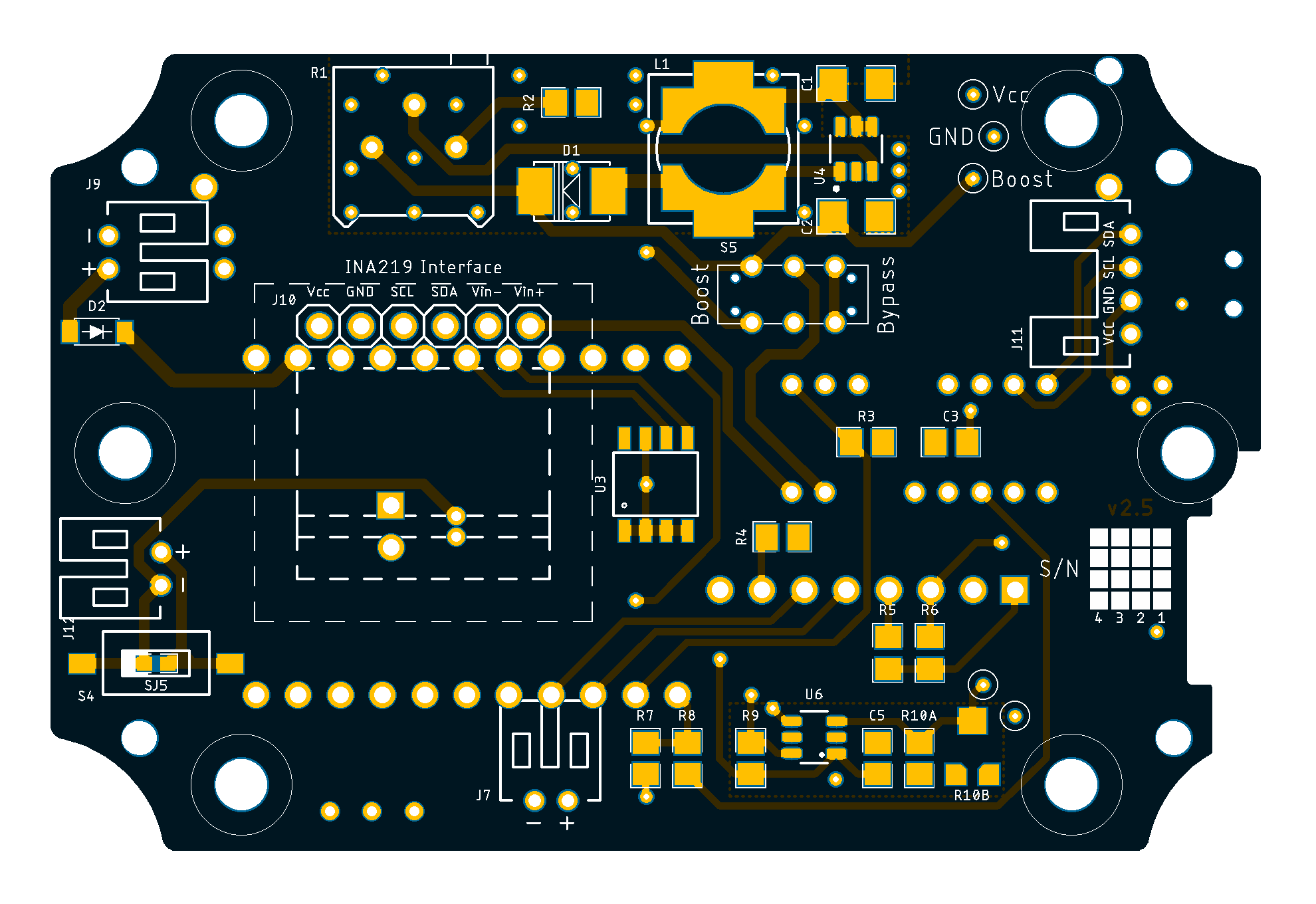

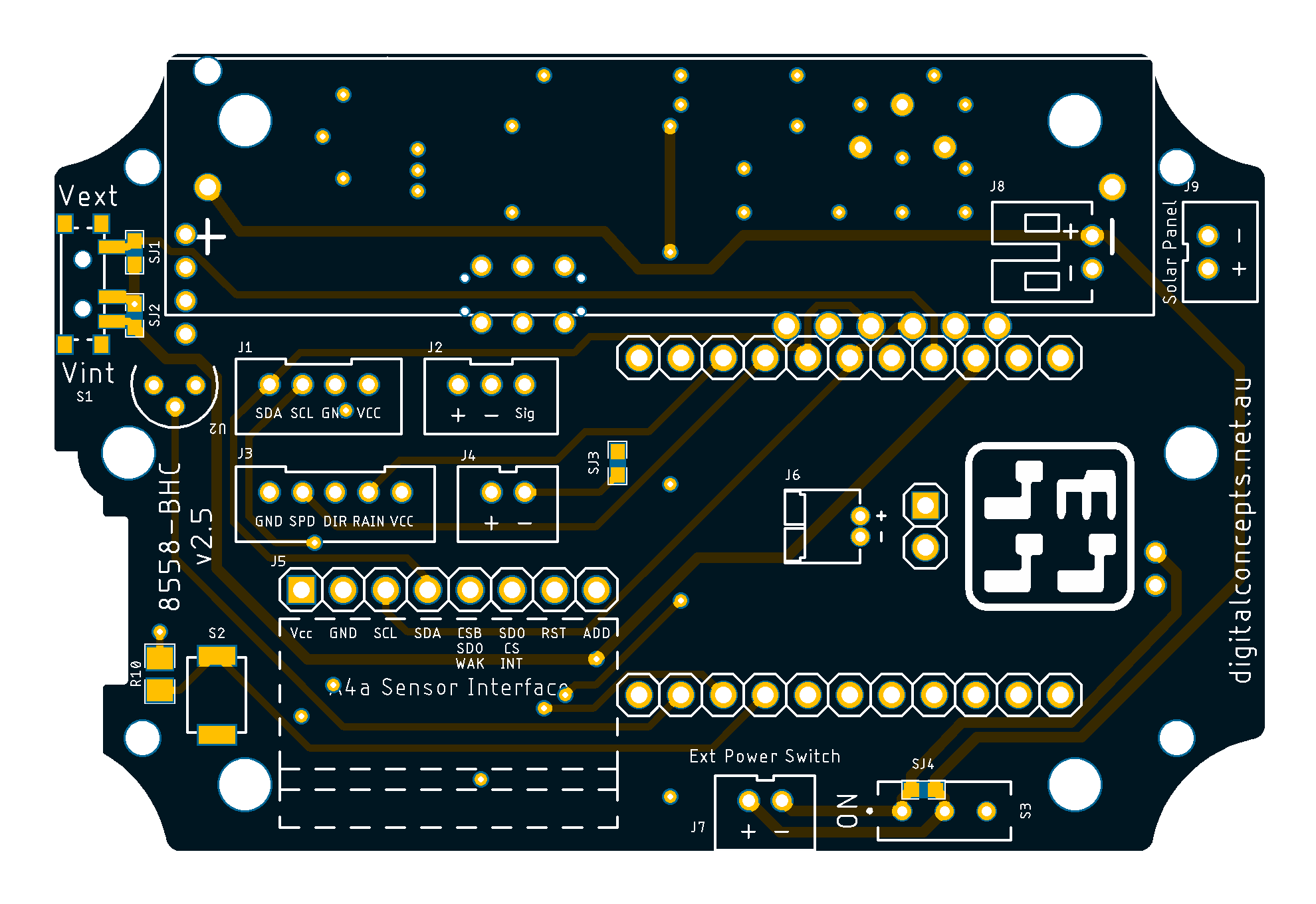

[8558-BHC] CubeCell Sensor Board

This is a power/sensor board specifically designed for the Heltec CubeCell development board, given that it includes its own on-board power management circuitry. A detailed discussion of all of the board features is provided elsewhere on this website (under the section dedicated to IoT node development).

Board schematic

Top	Bottom

8558-BHC PCB

8558-BHC Eagle CAD Files

[132 KB]

8558-BHC CAM Files

[360 KB]

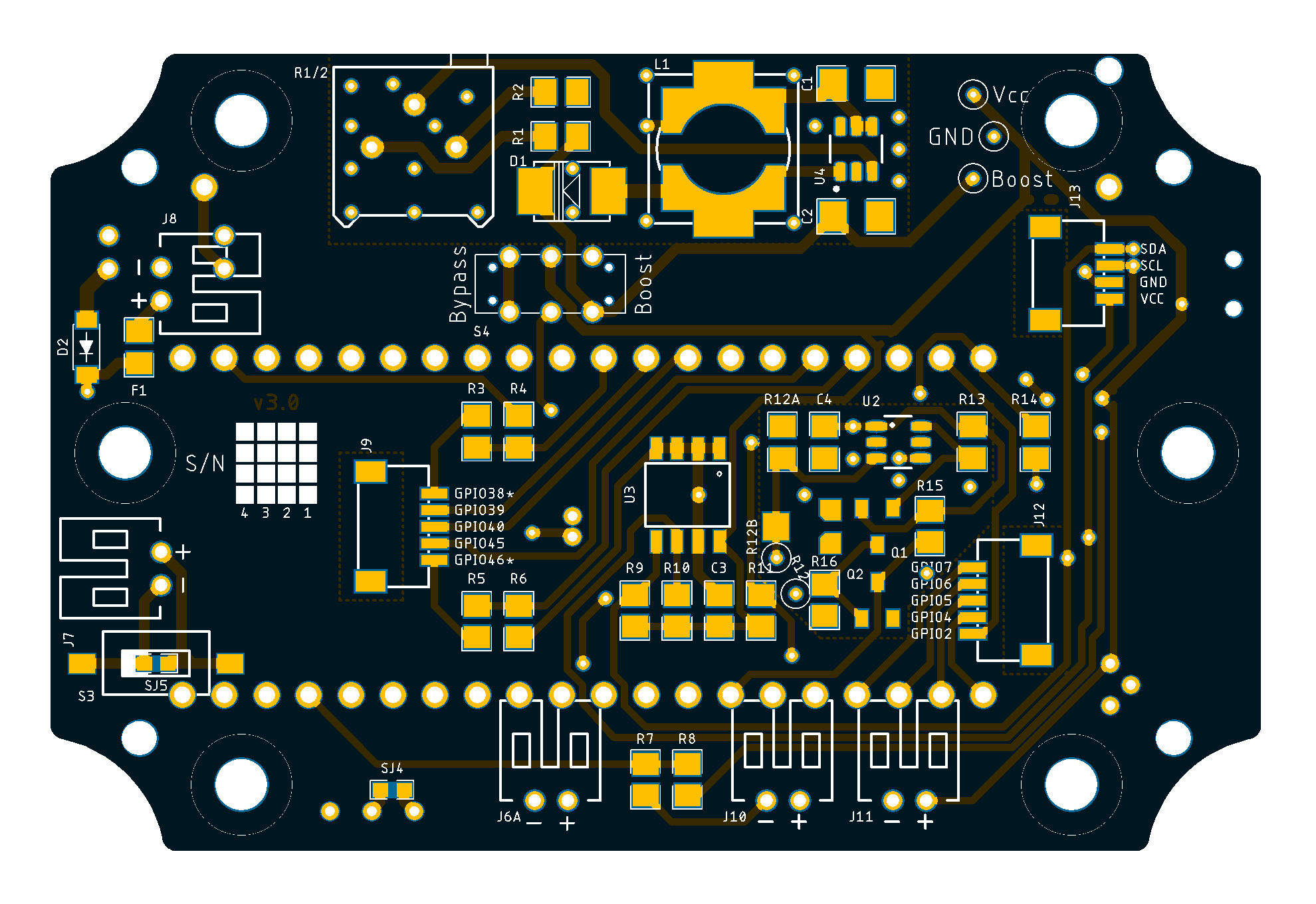

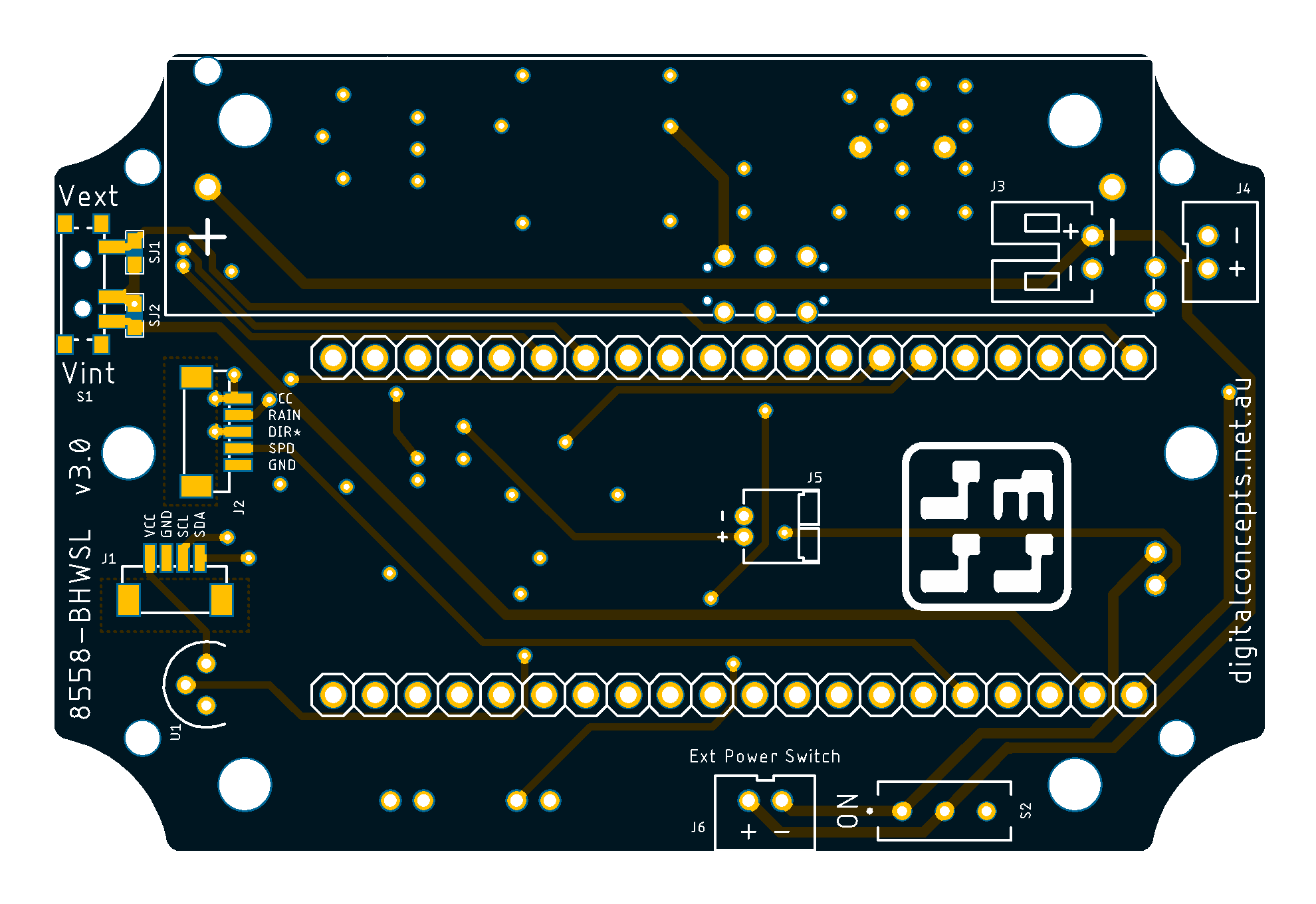

[8558-BHWSL] Wireless Stick Lite Base Board

This is a power/base board specifically designed for the Heltec Wireless Stick Lite V3 development board, given that it includes its own on-board power management circuitry. A detailed discussion of all of the board features is provided elsewhere on this website (under the section dedicated to IoT node development).

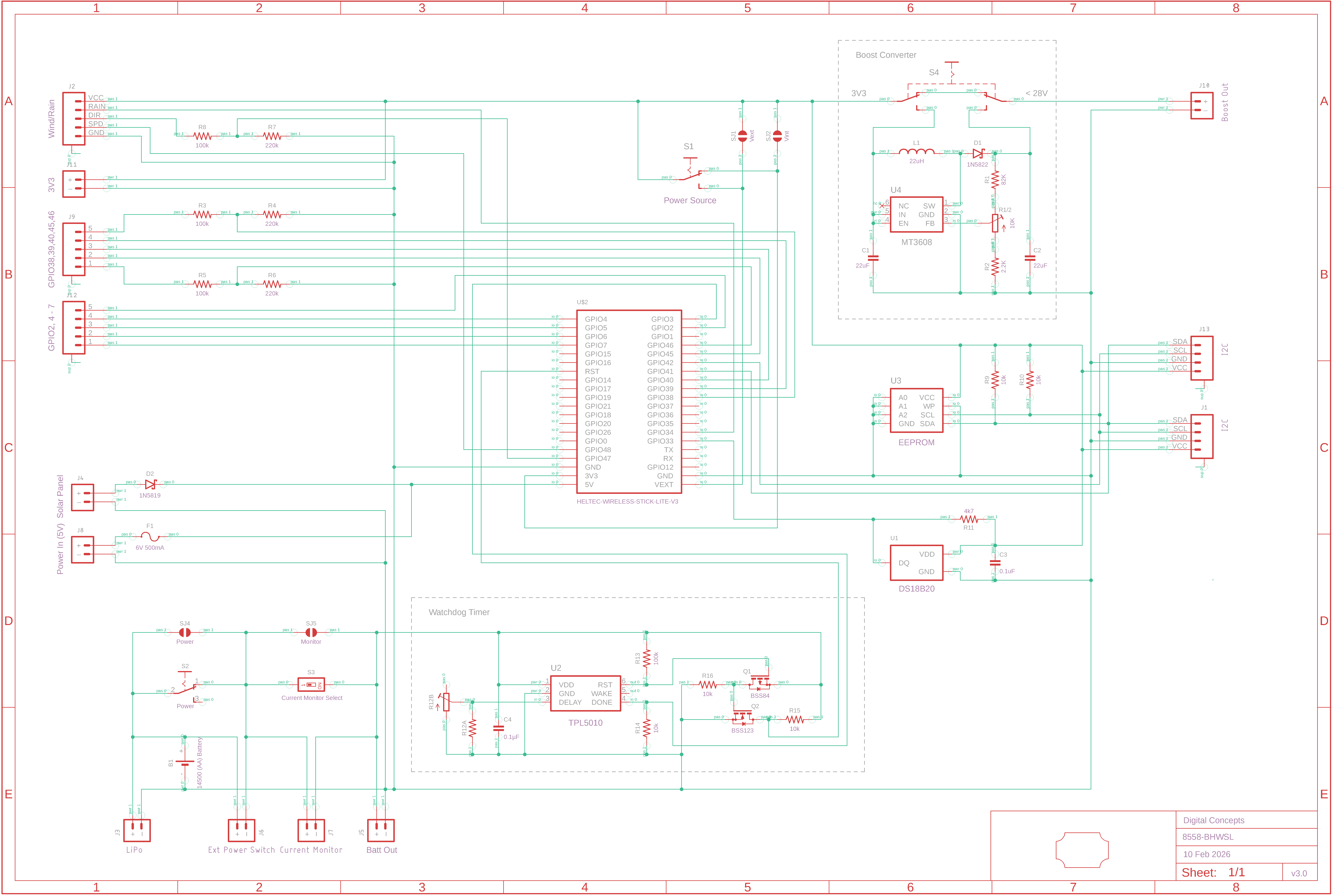

Board schematic
