13095-BPM-R PCB

Board Layout

Like the 13095-BP-R PCB, this board is designed to be used in a 'sandwich' configuration with the 13095-BPHC PCB in the Power Switch Node. The BPM-R is an 'extension' of the BP-R board that includes support for dual mechanical relays, as an optional alternative to the original solid state relay. It also includes a slot for better isolation of the mains voltage components.

The various subsystems are identified in the board schematic and laid out as illustrated below:

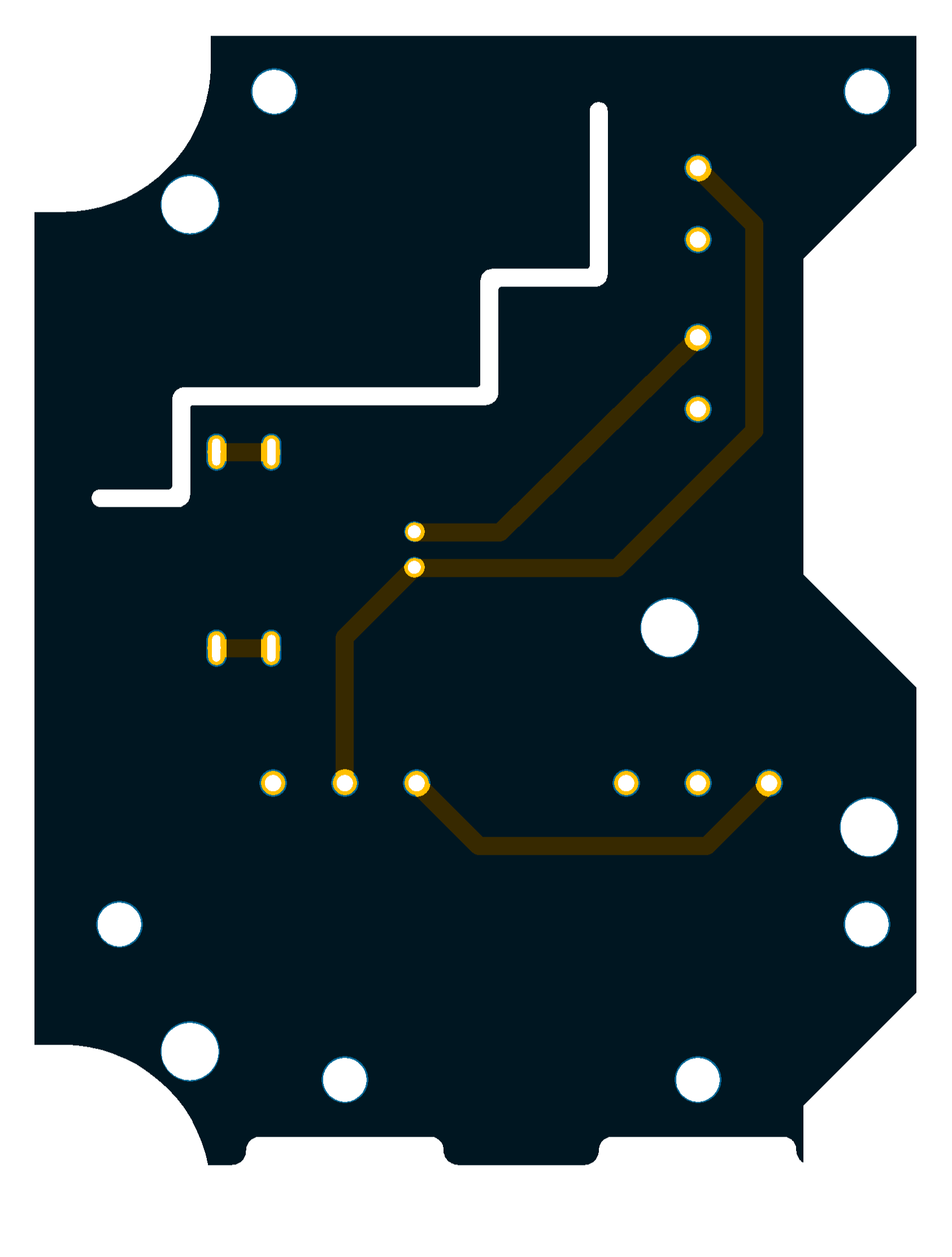

Top	Bottom

13095-BPM-R [v2.0] PCB

See here for CAD and CAM files.

Configuration

Details pending
