FP6277 [5V] Boost Converter Module

Board Layout

This is an implementation of the Design by Gerrit Niezen (on Tindie as Embedded Loop)— Project Details— using 0805 components, for little more reason than that's what I had at hand, although the larger components are a little bit easier to work with when soldering by hand.

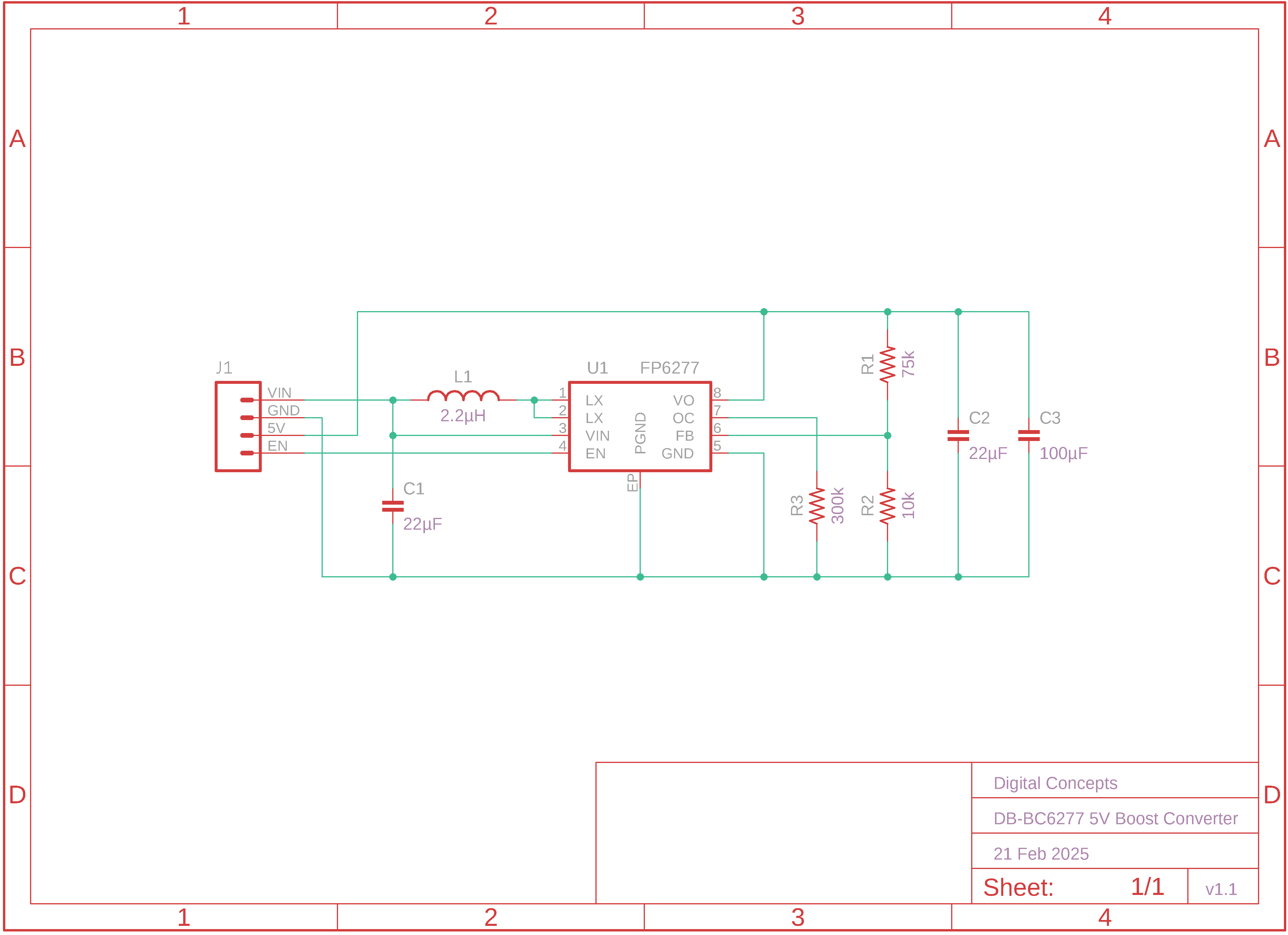

FP6277 [5V] Boost Converter Module Schematic

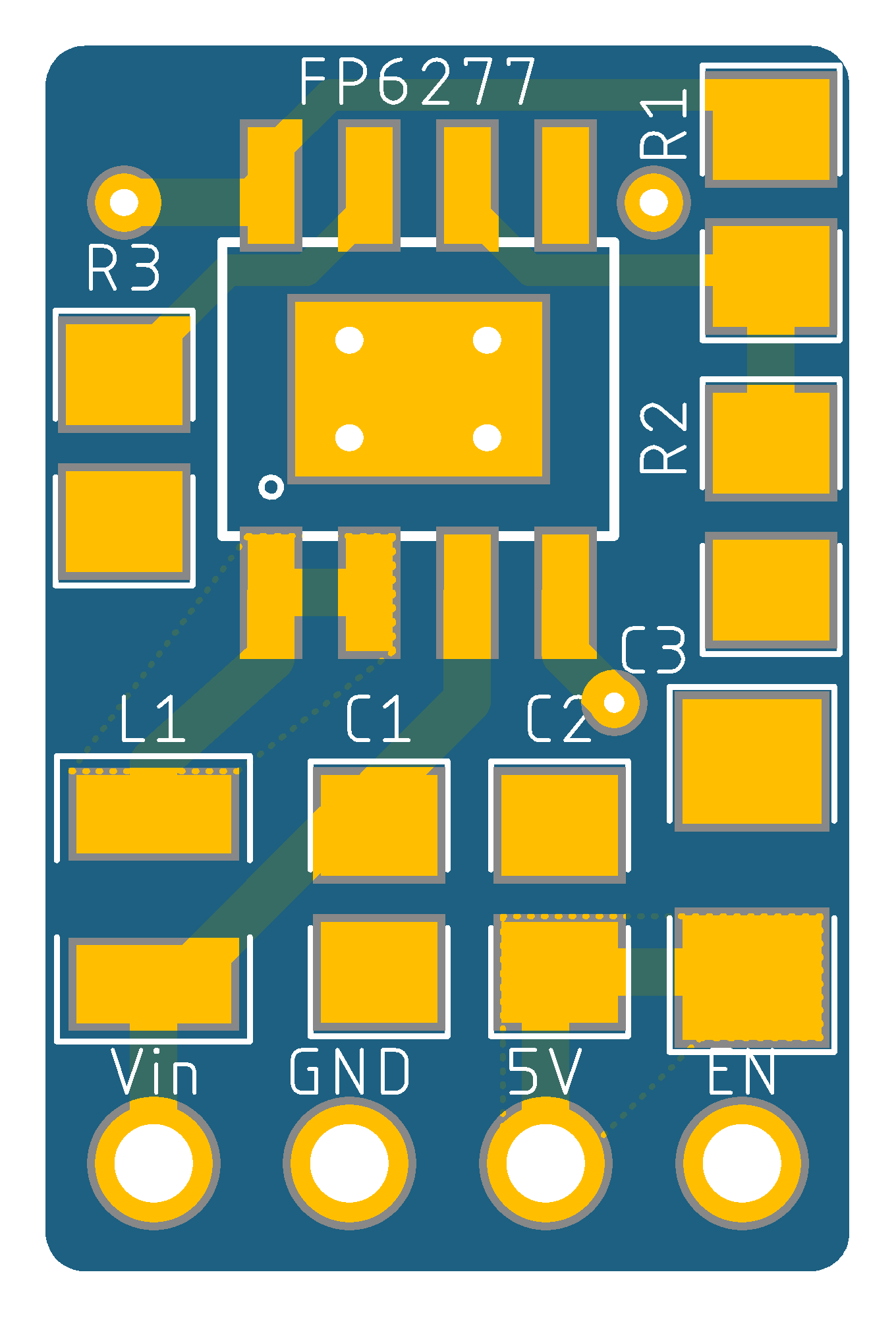

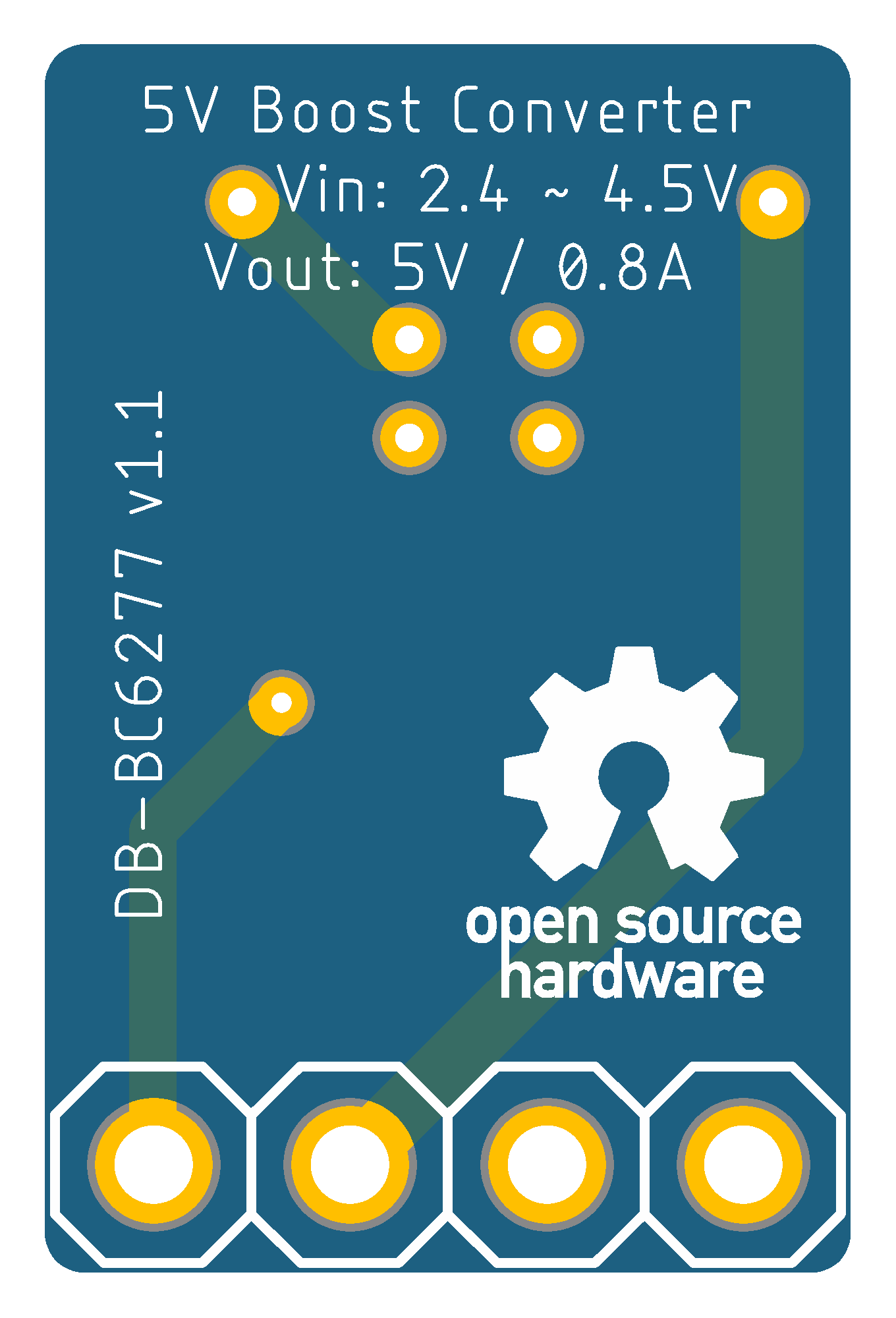

Top	Bottom

FP6277 Boost Converter Module PCB

FP6277 Boost Converter Module Eagle CAD Files

[25 KB]

FP6277 Boost Converter Module CAM Files

[54 KB]

For a boost converter supporting higher voltages, refer to the SX1308 (fixed output voltage) or MT3608 (variable output voltage) boost converter module pages.
