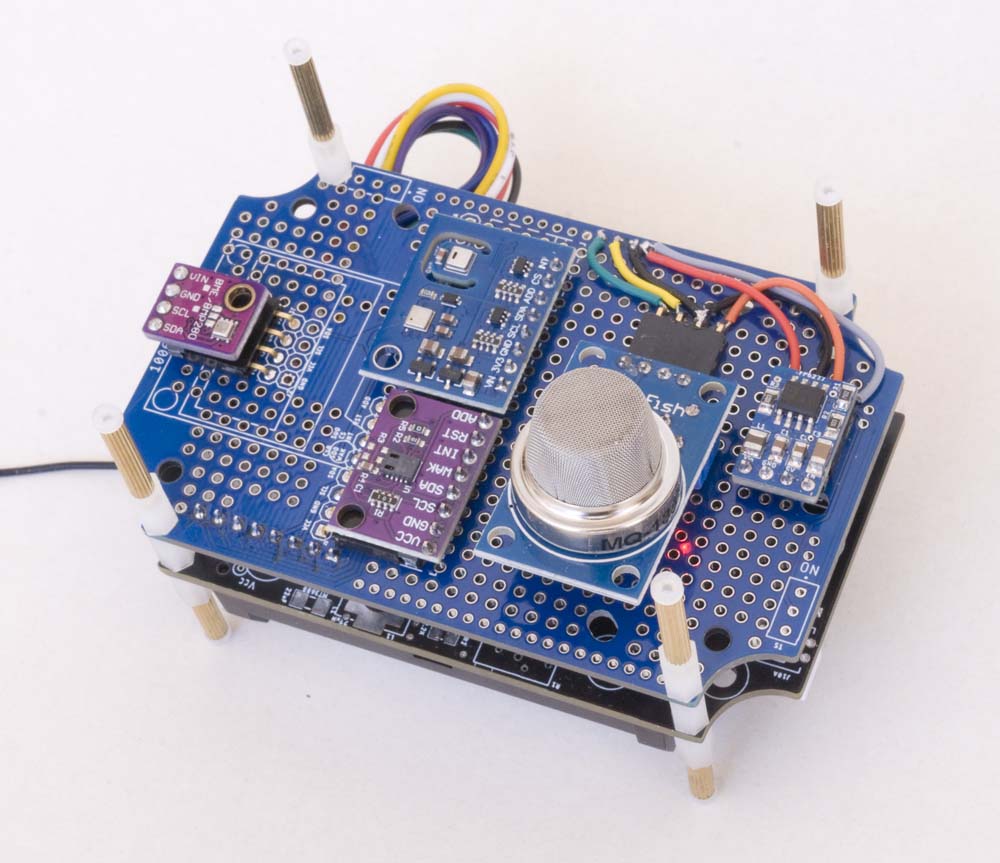

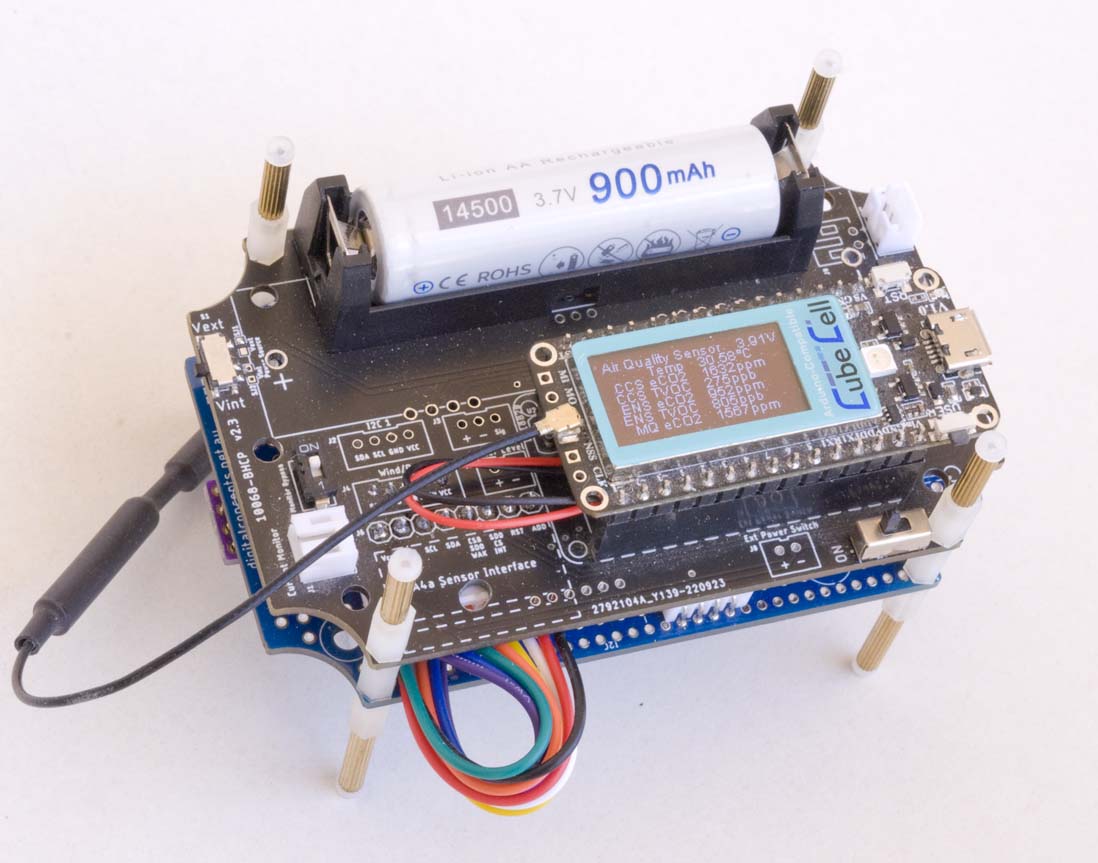

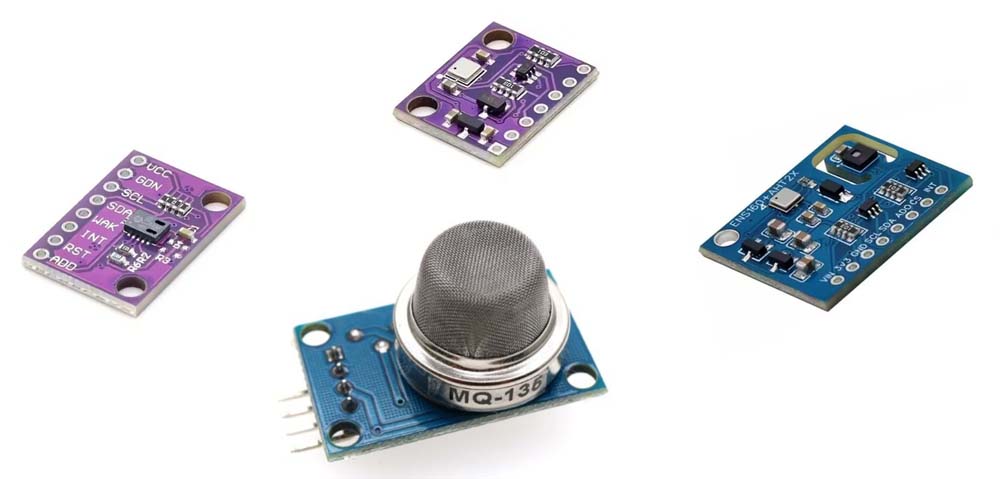

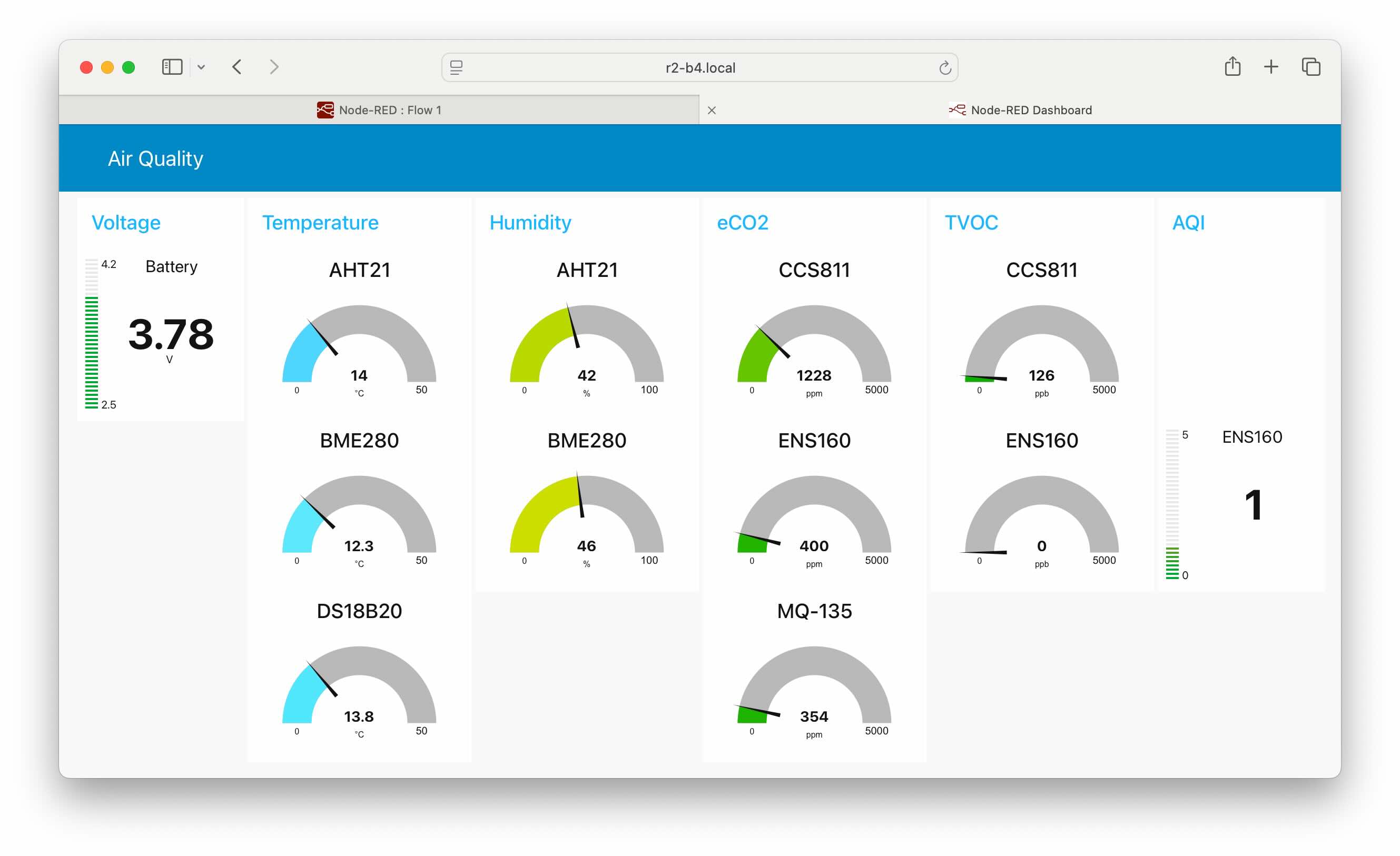

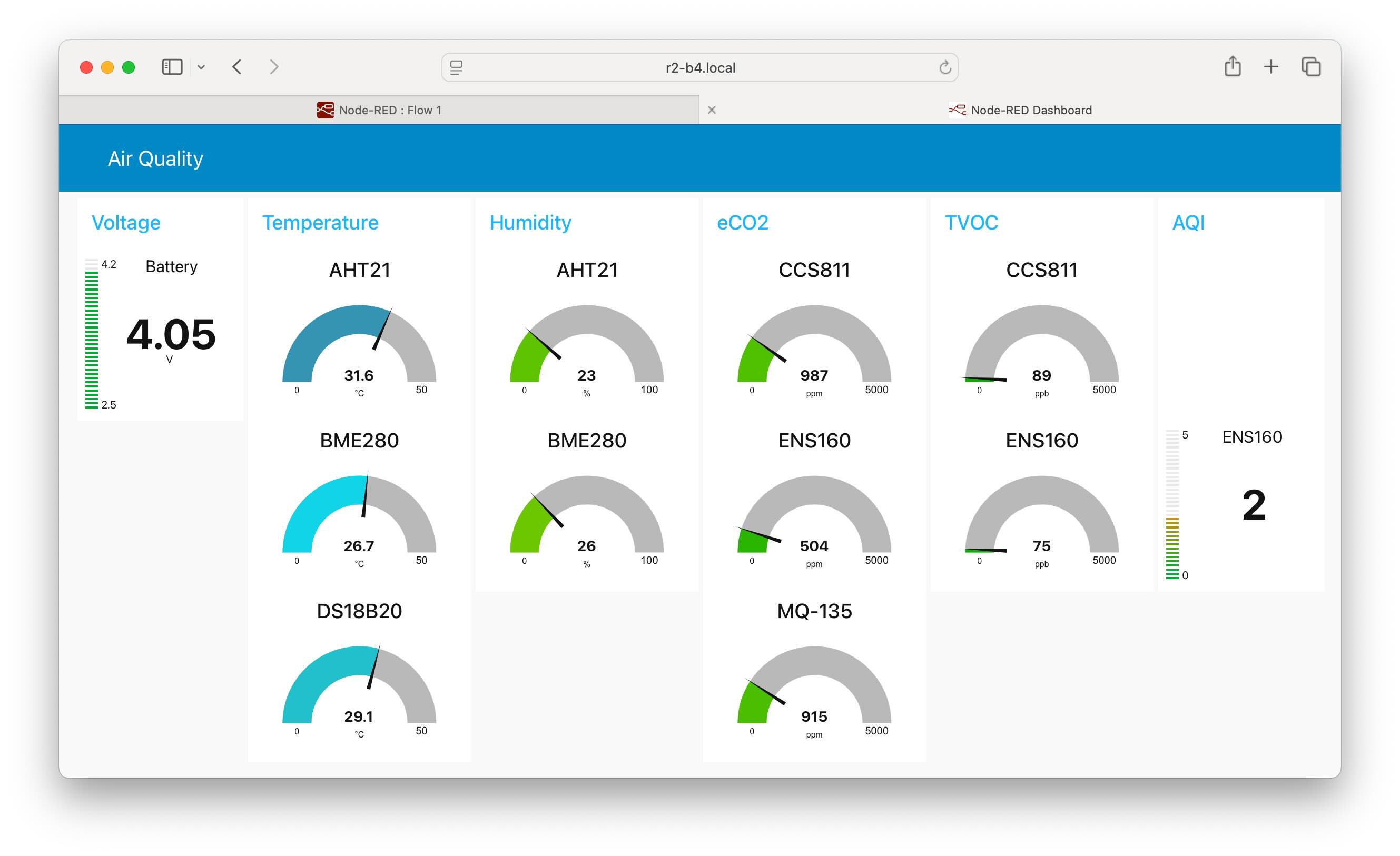

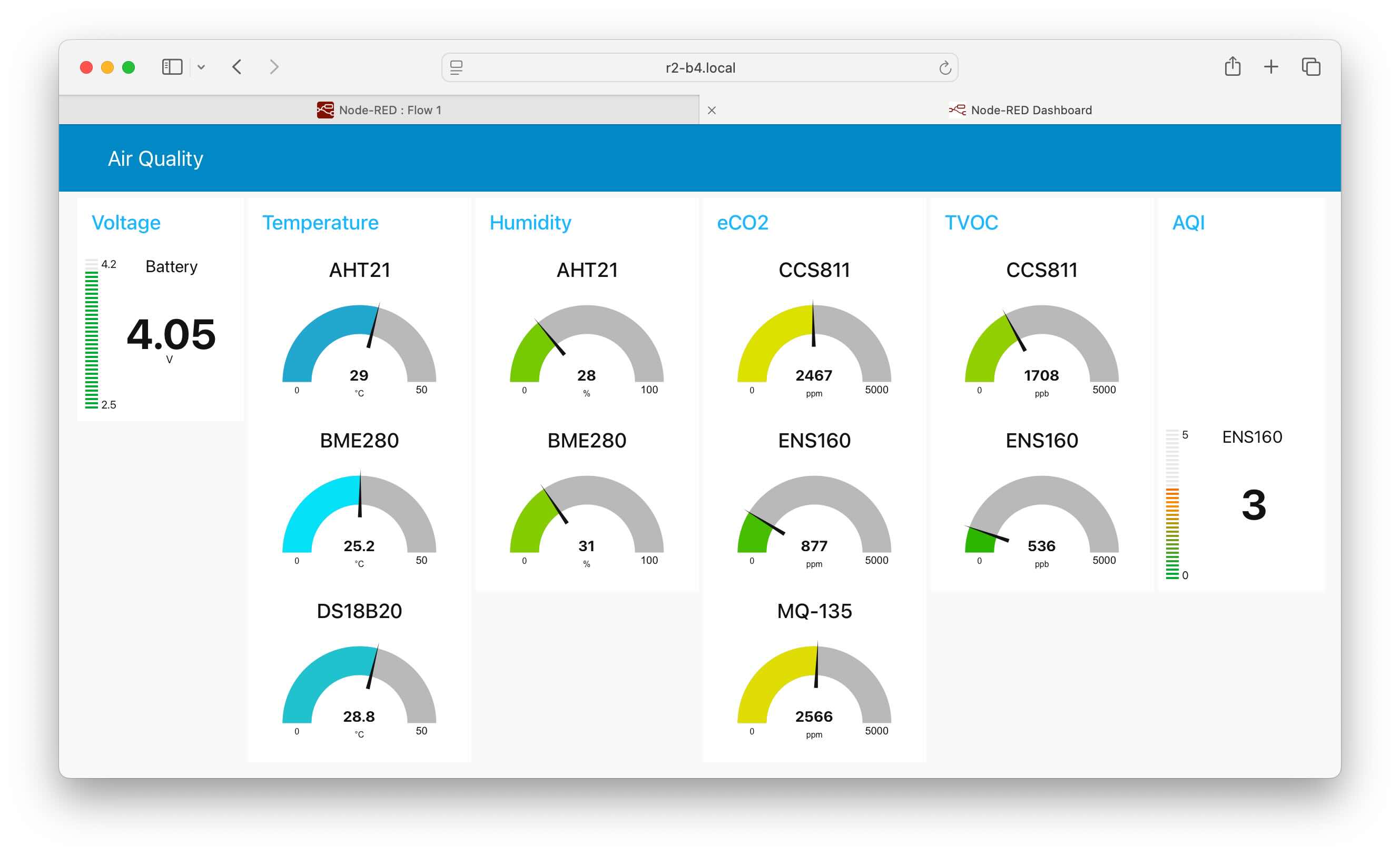

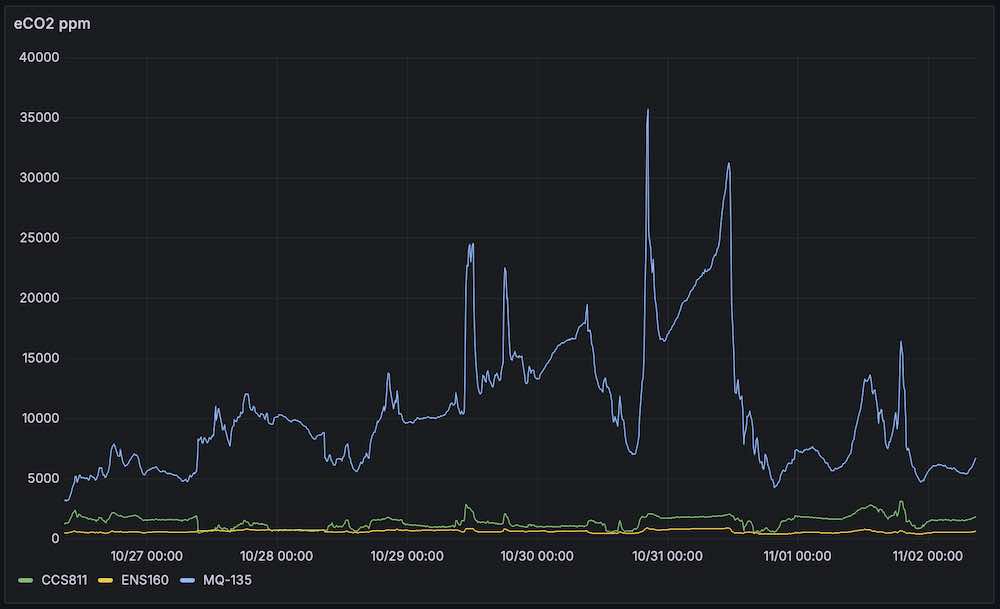

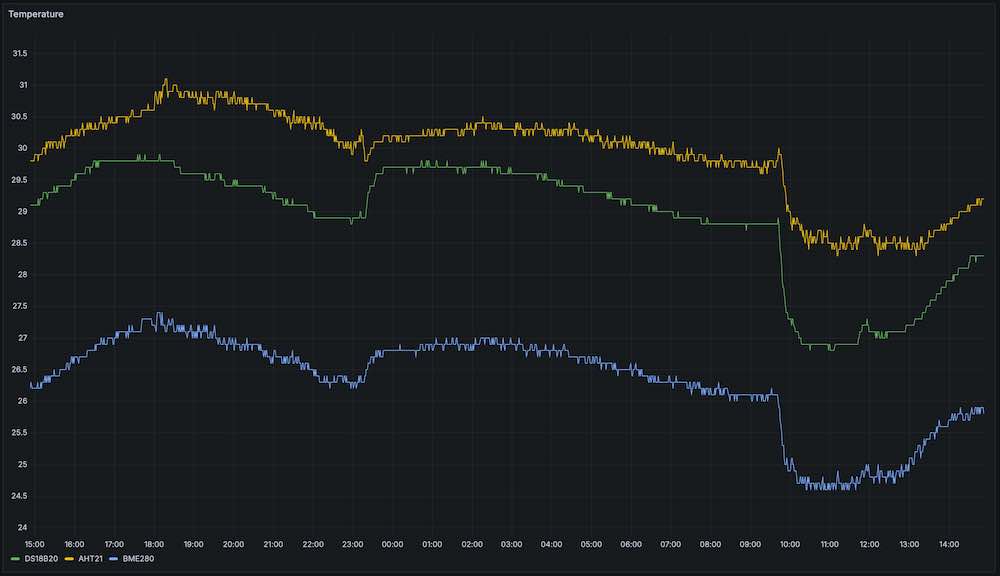

Air Quality Sensors

/*
    This sketch is used to set up/calibrate and compare the relative performance
    of CCS811, ENS160 and MQ-135 air quality sensors using the CubeCell-Board Plus.

    Digital Concepts
    16 Sep 2025
    digitalconcepts.net.au
 */

#include <CubeCell_NeoPixel.h>    // CubeCell NeoPixel control library
#include <LoRa_APP.h>             // CubeCell LoRa
#include <HT_SH1107Wire.h>        // CubeCell Plus display library

#include <DFRobot_AHT20.h>        // AHT21
#include <Seeed_BME280.h>         // BME280
#include <DFRobot_CCS811.h>       // CCS811
#include <OneWire.h>              // One-Wire bus (DS18B20)
#include <DallasTemperature.h>    // DS18B20
#include <DFRobot_ENS160.h>       // ENS160
#include "MQ135.h"                // Local version includes calibration settings

#include "EepromHandler.h"		    // EEPROM management
#include "PacketHandler.h"		    // LoRa packet management

#include "LoRa915.h"              // Local LoRa parameters
#include "CubeCellPlusPins.h"     // CubeCell Plus pin definitions

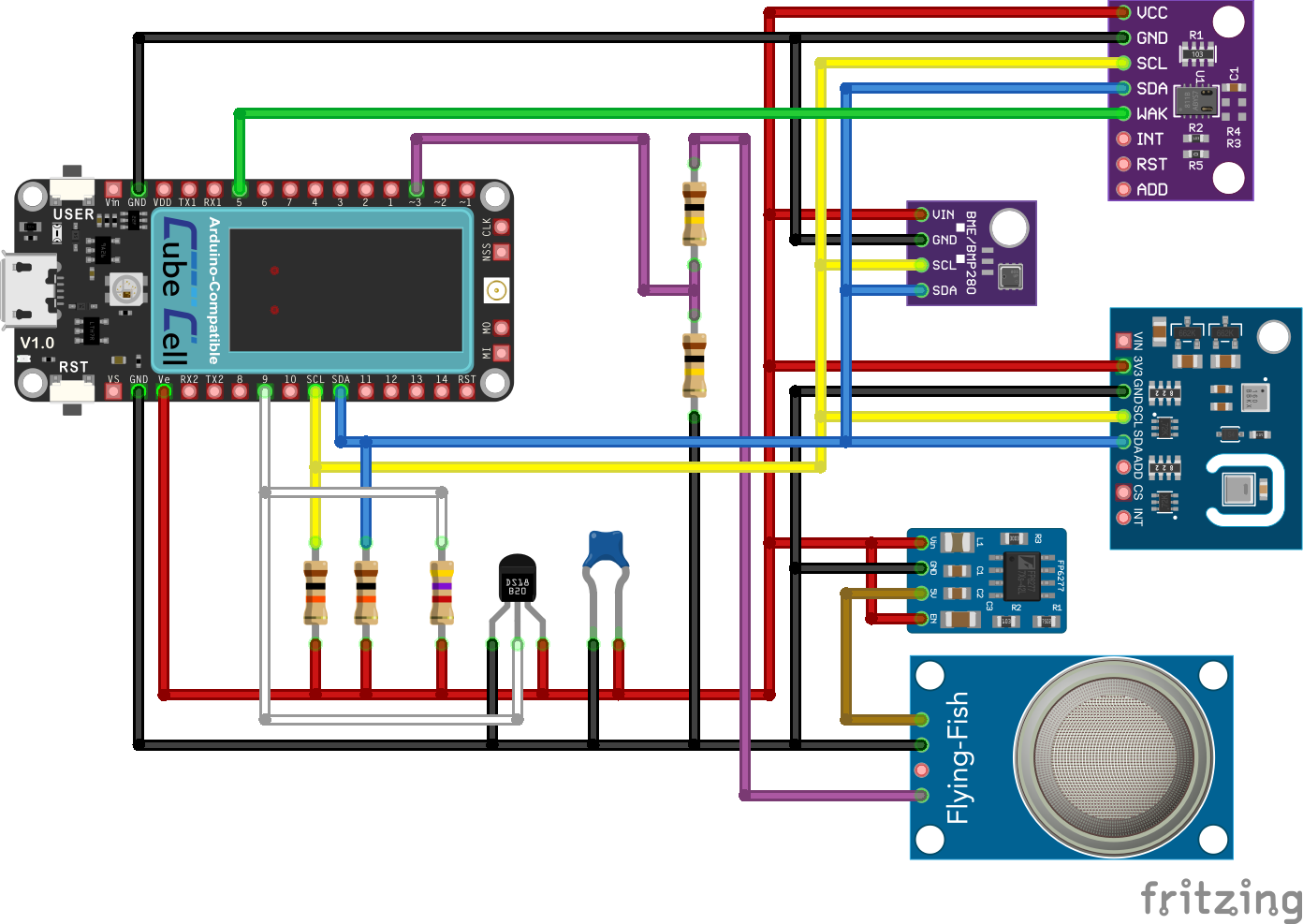

#define sendLoRaMessages  true
#define cyclePeriod       5000    // Milliseconds

#define ccsWakePin        GPIO5   // CCS811 WAK
#define oneWireBus        GPIO9   // DS18B20 bus
#define displayTogglePin  GPIO11  // Interrupt botton (display toggle)
#define mqAoPin           ADC3    // MQ135 analog output ADC

struct softwareRevision {
  const uint8_t major;			// Major feature release
  const uint8_t minor;			// Minor feature enhancement release
  const uint8_t minimus;		// 'Bug fix' release
};

softwareRevision sketchRevision = {0,0,2};
String sketchRev = String(sketchRevision.major) + "." + String(sketchRevision.minor) + "." + String(sketchRevision.minimus);

EepromHandler eeprom;
PacketHandler packet;

uint8_t* descriptor;
uint16_t messageCounter = 0;

SH1107Wire  plusDisplay(0x3c, 500000, SDA, SCL, GEOMETRY_128_64, GPIO10); // addr, freq, sda, scl, resolution, rst
bool toggleFlag = false;
bool oledOn = true;

// NeoPixel Parameters: # pixels, RGB or RGBW device, device colour order + frequency

CubeCell_NeoPixel neo(1, RGB, NEO_GRB + NEO_KHZ800);

uint16_t batteryVoltage = 0;

// Heltec CubeCell-Board Plus
// I2C - SDA & SCL defined in pins_arduino.h

DFRobot_AHT20 aht21;  // I2C Address 0x38
const uint8_t ahtSensorId = 1;
uint8_t ahtStatus;
float ahtHumidity = 35.0;
float ahtTemperature = 25.0;

#define BME280_I2C_Address_1 0x76
#define BME280_I2C_Address_2 0x77
BME280 bme280;
const uint8_t bmeSensorId = 2;
float bmeHumidity = 35.0;
float bmePressure = 1000.0;
float bmeTemperature = 25.0;

int intHumidity = 0;
int intPressure = 0;
int intTemperature = 0;

//DFRobot_CCS811 ccs811(&Wire, /*I2C_ADDRESS=*/0x5A);
DFRobot_CCS811 ccs811;
const uint8_t ccsSensorId = 3;
uint8_t ccsAqi = 99;
uint16_t ccsEco2 = 0;
uint16_t ccsTvoc = 0;

OneWire oneWire(oneWireBus);
DallasTemperature ds18b20(&oneWire);
const int ds18b20Precision = 9;
const uint8_t ds18b20SensorId = 0;

#define ENS160_I2C_Address_1 0x52
#define ENS160_I2C_Address_2 0x53
DFRobot_ENS160_I2C ens160;
const uint8_t ensSensorId = 4;
uint8_t ensAqi = 99;
uint16_t ensEco2 = 0;
uint16_t ensTvoc = 0;

#define RZERO 310.0     // Measured resistance : from calibration
#define RLOAD 74.2      // Measured resistance kOhms : MQ-135 module pin AO to GND with power off
MQ135 mq135(mqAoPin, RZERO, RLOAD);
const uint8_t mqSensorId = 5;
int mqAdc = 0;
uint8_t mqAqi = 99;
uint16_t mqEco2 = 0;
uint16_t mqTvoc = 65535;
const int mqArrayLength = 11;   // array length
float mqArray[mqArrayLength];   // array used to store and calculate rolling average of ppm data
int validArrayData = 0;   			// number of entries in the array which are valid data for use in rolling average

static RadioEvents_t RadioEvents;

void setup(void)
{
  boardInitMcu( );
  Serial.begin(115200);
  while (!Serial);

  pinMode(Vext, OUTPUT);                    // Sensor power
  digitalWrite(Vext, LOW);                  // Activate Vext (we're really writing to Vext_Ctrl here)
  pinMode(ccsWakePin,OUTPUT);               // CCS811 enable
  digitalWrite(ccsWakePin, LOW);
  pinMode(mqAoPin, INPUT);                  // MQ-135 anlaog output
  PINMODE_INPUT_PULLUP(displayTogglePin);   // OLED display ON/OFF button
  attachInterrupt(displayTogglePin, toggleIsr, FALLING);

  plusDisplay.init();
  plusDisplay.setFont(ArialMT_Plain_10);
  plusDisplay.screenRotate(ANGLE_180_DEGREE);

  plusDisplay.clear();
  plusDisplay.setFont(ArialMT_Plain_10);
  plusDisplay.setTextAlignment(TEXT_ALIGN_LEFT);
  plusDisplay.drawString(5,5,"Air Quality Sensor");
  plusDisplay.display();
  delay(1000);

  Serial.println("[setup] Initialising I2C bus...");
  Wire.begin();

  Serial.println("[setup] Initialising EEPROM...");
  eeprom.begin( &Wire );

  Serial.print("[setup] ");
  descriptor = eeprom.readBytes( EH_DESCRIPTOR );
  int byteCount = eeprom.getParameterByteCount( EH_DESCRIPTOR );
  for (int i = 0; i < byteCount; i++) {
    Serial.print((char)descriptor[i]);
  }
  Serial.println();
  Serial.println("[setup]        Sketch " + sketchRev);
  Serial.println("[setup] PacketHandler " + packet.softwareRevision( PACKET_HANDLER ));
  Serial.println("[setup]   NodeHandler " + packet.softwareRevision( NODE_HANDLER ));
  Serial.println("[setup] EepromHandler " + eeprom.softwareRevision());
  Serial.println();

  Serial.println("[setup] Initialising LoRa...");

  RadioEvents.TxDone = onTxDone;
  RadioEvents.TxTimeout = onTxTimeout;

  Radio.Init( &RadioEvents );
  Radio.SetChannel( Frequency );
  Radio.SetTxConfig( MODEM_LORA, OutputPower, 0, SignalBandwidthIndex,
                                 SpreadingFactor, CodingRate,
                                 PreambleLength, FixedLengthPayload,
                                 true, 0, 0, IQInversion, 3000 );

  Radio.Sleep( );

  Serial.println("[setup] Initialising sensors...");

  // Initialise the Packet Handler

  packet.begin( eeprom.readUint32( EH_GATEWAY_MAC ), eeprom.readUint32( EH_NODE_MAC ));

  if ((ahtStatus = aht21.begin()) == 0) {
    Serial.println("[setup] AHT21 sensor initialised");
  } else {
    Serial.print("[setup] AHT21 sensor initialization failed. Error status : ");
    Serial.println(ahtStatus);
  }
  readAHT21Sensor();

  Serial.println("[setup] Check possible BME280 sensor addresses...");
  Serial.print("[setup] Try 0x");
  Serial.print(BME280_I2C_Address_1,HEX);
  Serial.print("...");
  if (bme280.init(BME280_I2C_Address_1)) {
    Serial.println("sensor found and initialised");
  } else {
    Serial.println("no reponse");
    Serial.print("[setup] Try 0x");
    Serial.print(BME280_I2C_Address_2,HEX);
    Serial.print("...");
    if (bme280.init(BME280_I2C_Address_2)) {
      Serial.println("sensor found and initialised");
    } else {
      Serial.println("no reponse");
      Serial.println( "[setup] BME280 initialisation failed..." );
    }
  }
  delay(100); // The BME280 needs a moment to get itself together... (50ms is too little time)

  Serial.println("[setup] Initialising CCS811...");
 // Wait for the chip to be initialized completely, and then exit
  while(ccs811.begin() != 0){
      Serial.println("[setup] CCS811 initialisation failed...");
      delay(3000);
  }
  /*!
    * @brief Set baseline
    * @param get from getBaseline.ino
    */
  ccs811.writeBaseLine(0x8BBA);

  Serial.println("[setup] Initialising DS18B20...");
  ds18b20.begin();

  /*
    Ambient temperature and humidity readings, if available, are used to calibrate
    ENS160 air quality measurements
   */

  Serial.println("[setup] Check possible ENS160 sensor addresses...");
  Serial.print("[setup] Try 0x");
  Serial.print(ENS160_I2C_Address_1,HEX);
  Serial.print("...");
  Wire.beginTransmission(ENS160_I2C_Address_1);
  if (Wire.endTransmission() == 0)  {
    Serial.println("sensor found");
    while( NO_ERR != ens160.begin(&Wire, ENS160_I2C_Address_1) ){
      Serial.println("[setup] ENS160 sensor initialisation failed...");
      delay(3000);
    }
  } else {
    Serial.println("no reponse");
    Serial.print("[setup] Try 0x");
    Serial.print(ENS160_I2C_Address_2,HEX);
    Serial.print("...");
    Wire.beginTransmission(ENS160_I2C_Address_2);
    if (Wire.endTransmission() == 0)  {
      Serial.println("sensor found");
      while( NO_ERR != ens160.begin(&Wire, ENS160_I2C_Address_2) ){
        Serial.println("[setup] ENS160 sensor initialisation failed...");
        delay(3000);
      }
    } else {
      Serial.println("no reponse");
      Serial.println( "[setup] Unable to identify ENS160 sensor" );
      while (true);
    }
  }
  /*
    Set Power Mode
    ENS160_SLEEP_MODE    : DEEP SLEEP mode (low power standby)
    ENS160_IDLE_MODE     : IDLE mode (low-power)
    ENS160_STANDARD_MODE : STANDARD Gas Sensing Modes
   */
  Serial.println("[setup] Set Power Mode...");
  ens160.setPWRMode(ENS160_STANDARD_MODE);

  mqArray[0]=1;         // mqArray[0] is index pointing to first [MQ-135] data location

  Serial.println("[setup] Initialisation complete");
  Serial.println();

  // Let the gateway/broker know there's been a reset

  Serial.println("[setup] Send out a reset advisory...");
  packet.setPacketType( RESET );
  packet.setResetCode( 0 );
  packet.serialOut();
  sendMessage();
  delay(100);
}

void loop() {
  if ( toggleFlag ) {
    Serial.println("[loop] Toggle the display...");
    toggleDisplay();
    toggleFlag = false;
  }
  Serial.println("[loop] Read and increment Sequence Number...");
  messageCounter = eeprom.readUint16( EH_SEQUENCE ) + 1;
  Serial.println();

  Serial.println("[loop] Read battery voltage...");
  batteryVoltage = getBatteryVoltage();
  Serial.print("[loop] Battery voltage : ");
  Serial.println((float) batteryVoltage/1000, 2);
  packet.setSequenceNumber( messageCounter );
  packet.setPacketType( VOLTAGE );
  packet.setSensorId( 0 );
  packet.setVoltage( batteryVoltage );
  if (sendLoRaMessages ) sendMessage();
  delay(200);

  readAHT21Sensor();
  packet.setPacketType( ATMOSPHERE );
  packet.setSensorId(ahtSensorId);
  packet.setTemperature( intTemperature );
  packet.setPressure( 0 );
  packet.setHumidity( intHumidity );
  if (sendLoRaMessages ) sendMessage();
  delay(200);

  readBME280Sensor();
  packet.setPacketType( ATMOSPHERE );
  packet.setSensorId(bmeSensorId);
  packet.setTemperature( intTemperature );
  packet.setPressure( intPressure );
  packet.setHumidity( intHumidity );
  if (sendLoRaMessages ) sendMessage();
  delay(200);

  readDS18B20Sensor();
  packet.setPacketType( TEMPERATURE );
  packet.setSensorId(ds18b20SensorId);
  packet.setTemperature( intTemperature );
  if (sendLoRaMessages ) sendMessage();
  delay(200);

  readCCS811Sensor();
  packet.setPacketType( AIRQUALITY );
  packet.setSensorId(ccsSensorId);
  packet.setAqi( ccsAqi );
  packet.setEco2( ccsEco2 );
  packet.setTvoc( ccsTvoc );
  if (sendLoRaMessages ) sendMessage();
  delay(200);

  readENS160Sensor();
  packet.setPacketType( AIRQUALITY );
  packet.setSensorId(ensSensorId);
  packet.setAqi( ensAqi );
  packet.setEco2( ensEco2 );
  packet.setTvoc( ensTvoc );
  if (sendLoRaMessages ) sendMessage();
  delay(200);

  readMQ135Sensor();
  packet.setPacketType( AIRQUALITY );
  packet.setSensorId(mqSensorId);
  packet.setAqi( mqAqi );
  packet.setEco2( mqEco2 );
  packet.setTvoc( mqTvoc );
  if (sendLoRaMessages ) sendMessage();
  delay(200);

  if (oledOn) displayData();

  eeprom.writeUint16( EH_SEQUENCE, messageCounter ); // Save the message counter

  Serial.println();
  delay(cyclePeriod);
}

void onTxDone(void)
{
  Serial.println("[OnTxDone] TX done!");
  Radio.Sleep( );
}

void onTxTimeout(void)
{
  Serial.println("[OnTxTimeout] TX Timeout...");
  Radio.Sleep( );
}

void toggleIsr() {
  toggleFlag = true;
}

void toggleDisplay() {
  if (oledOn) {
    plusDisplay.displayOff(); // Switch off display
  } else {
    plusDisplay.displayOn(); // Switch on display
  }
  oledOn = !oledOn;
}

void displayData() {
  plusDisplay.clear();
  plusDisplay.setFont(ArialMT_Plain_10);
  plusDisplay.setTextAlignment(TEXT_ALIGN_LEFT);
  plusDisplay.drawString(5,0,"Air Quality Sensor");
  plusDisplay.drawString(100,0,String((float)batteryVoltage/1000,2) + "V");
//  plusDisplay.setFont(ArialMT_Plain_24);
  plusDisplay.setTextAlignment(TEXT_ALIGN_RIGHT);
  plusDisplay.drawString(60,8,"Temp");
  plusDisplay.drawString(60,16,"CCS eCO2");
  plusDisplay.drawString(60,24,"CCS TVOC");
//  plusDisplay.drawString(60,32,"ENS AQI");
  plusDisplay.drawString(60,32,"ENS eCO2");
  plusDisplay.drawString(60,40,"ENS TVOC");
  plusDisplay.drawString(60,48,"MQ eCO2");
  plusDisplay.setTextAlignment(TEXT_ALIGN_LEFT);
  plusDisplay.drawString(70,8,String(ahtTemperature,2) + "°C");
  plusDisplay.drawString(70,16,String(ccsEco2) + "ppm");
  plusDisplay.drawString(70,24,String(ccsTvoc) + "ppb");
//  plusDisplay.drawString(70,32,String(ensAqi));
  plusDisplay.drawString(70,32,String(ensEco2) + "ppm");
  plusDisplay.drawString(70,40,String(ensTvoc) + "ppb");
  plusDisplay.drawString(70,48,String(mqEco2) + "ppm");
  plusDisplay.display();
}

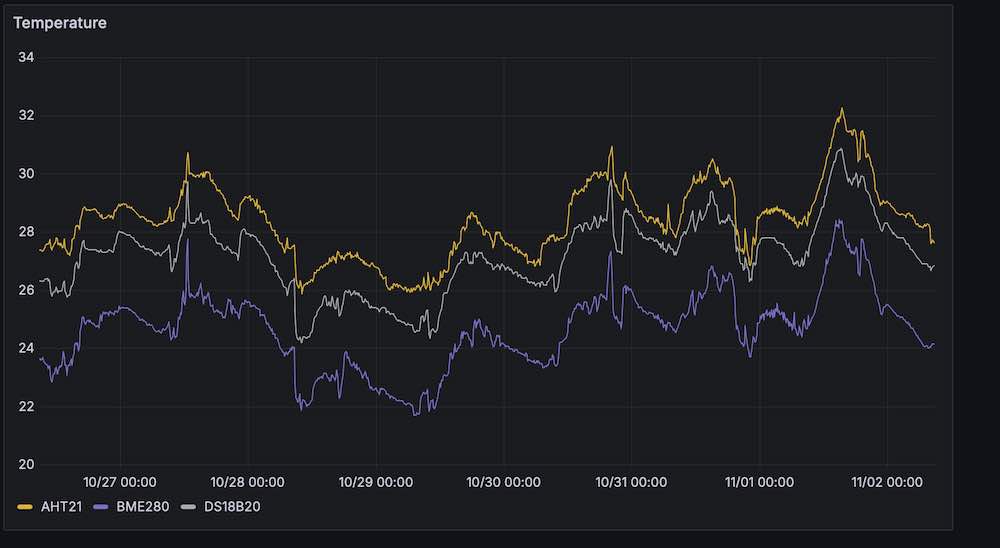

void readAHT21Sensor() {
  if (aht21.startMeasurementReady(/* crcEn = */true)) {
    ahtTemperature = aht21.getTemperature_C();
    intTemperature = (int)(10 * ahtTemperature);
    Serial.print("[readAHT21Sensor]  Temperature : ");
    // Get temp in Celsius (°C), range -40-80°C
    Serial.print(ahtTemperature);
    Serial.println(" °C");
    // Get temp in Fahrenheit (F)
//    Serial.print(aht20.getTemperature_F());
//    Serial.println(" °F");
    // Get relative humidity (%RH), range 0-100%
    ahtHumidity = aht21.getHumidity_RH();
    intHumidity = (int)ahtHumidity;
    Serial.print("[readAHT21Sensor]     Humidity : ");
    Serial.print(ahtHumidity);
    Serial.println("%");
  } else {
    Serial.println("[readAHT21Sensor] No temperature data available");
    Serial.println("[readAHT21Sensor] Using default ambient conditions for calibration...");
    Serial.print("[readAHT21Sensor]  Temperature : ");
    Serial.print(ahtTemperature);
    Serial.println(" °C");
    Serial.print("[readAHT21Sensor]     Humidity : ");
    Serial.print(ahtHumidity);
    Serial.println("%");
  }
}

void readBME280Sensor() {
  Serial.println("[readBMESensor] Read sensor...");
/*
 * If this node is reading atmospheric conditions from a BME sensor
 * All values recorded as integers, temperature multiplied by 10 to keep one decimal place
*/
  bmeTemperature = bme280.getTemperature();
  intTemperature = (int)(10 * bme280.getTemperature());
  bmePressure = bme280.getPressure() / 91.79F;
  intPressure = (int)(bme280.getPressure() / 91.79F);
  bmeHumidity = bme280.getHumidity();
  intHumidity = (int)bme280.getHumidity();

  Serial.print("[readBME280Sensor] Temperature : ");
  Serial.print(bmeTemperature, 1);
  Serial.println(" °C");
  Serial.print("[readBME280Sensor]    Pressure : ");
  Serial.print(bmePressure, 0);
  Serial.println(" hPa");
  Serial.print("[readBME280Sensor]    Humidity : ");
  Serial.print(bmeHumidity, 0);
  Serial.println("%");
}

void readCCS811Sensor() {
  /*
    Set temperatuer & humidity
    */
  ccs811.setInTempHum(ahtTemperature, ahtHumidity);

  if (ccs811.checkDataReady() == true) {
    Serial.print("[readCCS811Sensor]                    eCO2 : ");
    ccsEco2 = ccs811.getCO2PPM();
    Serial.print(ccsEco2);
    Serial.println(" ppm");
    Serial.print("[readCCS811Sensor]                    TVOC : ");
    ccsTvoc = ccs811.getTVOCPPB();
    Serial.print(ccsTvoc);
    Serial.println(" ppb");
  } else {
    Serial.println("[readCCS811Sensor] Data not ready!");
  }
}

void readDS18B20Sensor() {
  Serial.println("[readDS18B20Sensor] Read sensor...");
  ds18b20.requestTemperatures(); // Send the command to get temperatures

  // After we get the temperature(s), we can print it/them here.
  // We use the function ByIndex and get the temperature from the first sensor (there's only one at the moment).
  Serial.println("[readDS18B20Sensor] Device 1 (index 0)");
  float sensorValue = ds18b20.getTempCByIndex(0);
  Serial.print("[readDS18B20Sensor] Returned value: ");
  Serial.println(sensorValue);

  intTemperature = (int) (10*(sensorValue + 0.05));  // °C x 10
  Serial.print("[readDS18B20Sensor] Temperature: ");
  Serial.println((float) intTemperature/10, 1);
}

void readENS160Sensor() {
  /*
    Set temperatuer & humidity
    */
  ens160.setTempAndHum(ahtTemperature, ahtHumidity);
  /*
    Get the Sensor Operating Status
    Return value: 0 - Normal operation,
                  1 - Warm-Up phase, first 3 minutes after power-on.
                  2 - Initial Start-Up phase, first full hour of operation after initial power-on. Only once in the sensor’s lifetime.
    Note: The status will only be stored in the non-volatile memory after an initial 24h of continuous
          operation. If unpowered before conclusion of said period, the ENS160 will resume "Initial Start-up" mode
          after re-powering.
   */
  uint8_t ensStatus = ens160.getENS160Status();
  Serial.print("[readENS160Sensor] Sensor Operating Status : ");
  Serial.println(ensStatus);

  /*
    Get the Air Quality Index
    Return value: 1 - Excellent
                  2 - Good
                  3 - Moderate
                  4 - Poor
                  5 - Unhealthy
   */
  ensAqi = ens160.getAQI();
  Serial.print("[readENS160Sensor]       Air Quality Index : ");
  Serial.println(ensAqi);

  /*

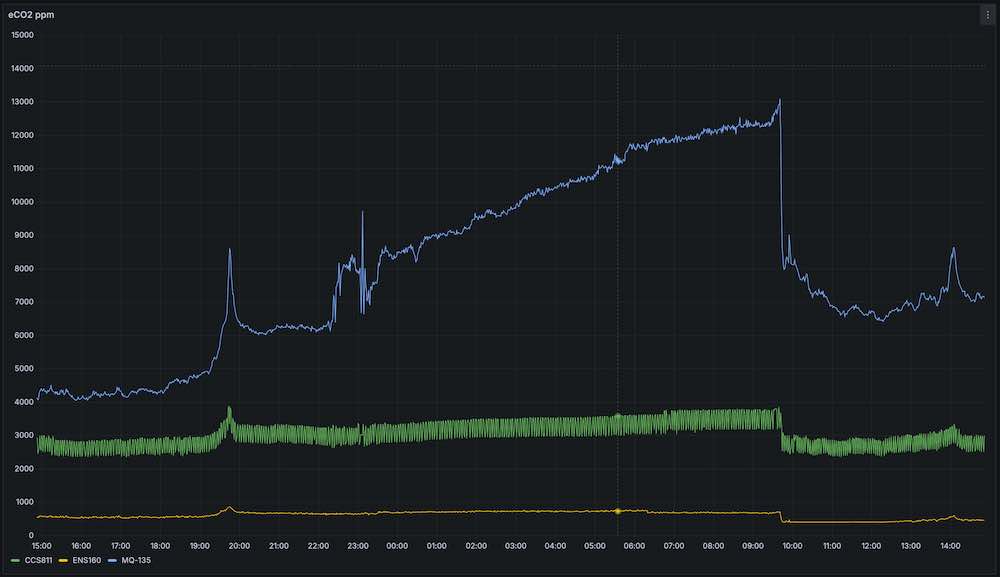

    Get CO2 equivalent concentration calculated according to the detected data of VOCs and hydrogen (eCO2 – Equivalent CO2)
    Return value range: 400–65000, unit: ppm
    Five levels:  Excellent ( 400 -  600)
                  Good      ( 600 -  800)
                  Moderate  ( 800 - 1000)
                  Poor      (1000 - 1500)
                  Unhealthy (     > 1500)
   */
  ensEco2 = ens160.getECO2();
  Serial.print("[readENS160Sensor]                    eCO2 : ");
  Serial.print(ensEco2);
  Serial.println(" ppm");

  /*

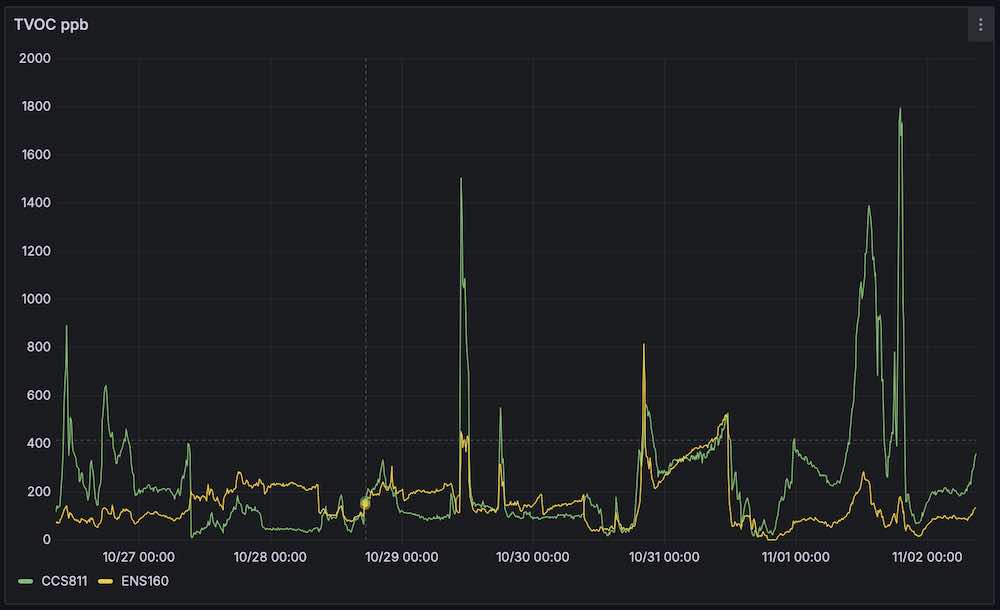

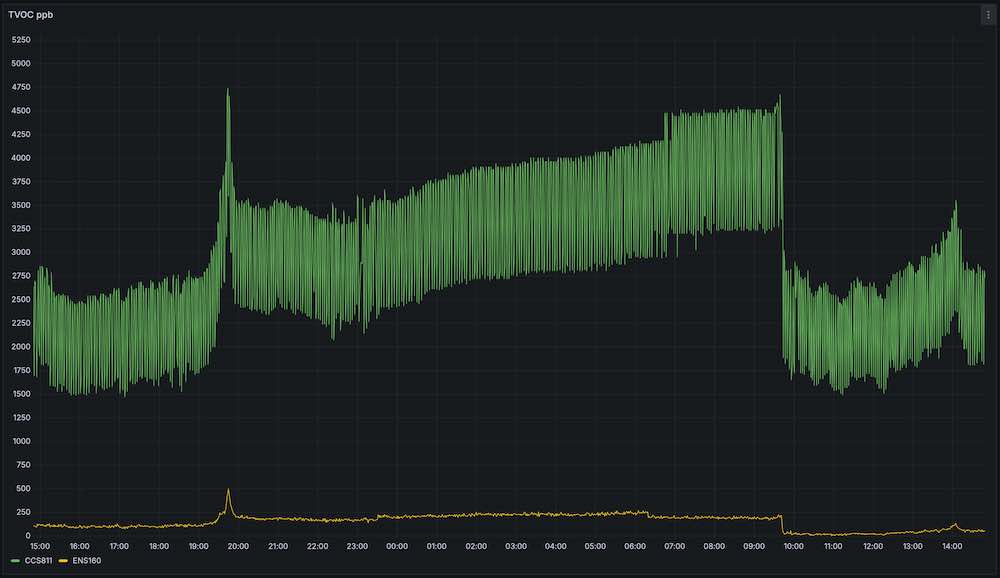

    Get Total Volatile Organic Compound (TVOC) concentration
    Return value range: 0–65000, unit: ppb
   */
  ensTvoc = ens160.getTVOC();
  Serial.print("[readENS160Sensor]                    TVOC : ");
  Serial.print(ensTvoc);
  Serial.println(" ppb");
}

void readMQ135Sensor() {
  mqAdc = analogRead(ADC3);
  Serial.print("[readMQ135Sensor]                      ADC : ");
  Serial.println(mqAdc);

  #ifdef _CALIBRATE
    // Read sensor resistance
    float value = mq135.getRZero();
    Serial.print("[readMQ135Sensor]              R Zero Ohms : ");
    Serial.println(value);
  #else
    // Read air quality sensor
    float value = mq135.getPPM();
    Serial.print("[readMQ135Sensor]              Air Quality : ");
    Serial.print(value);
    Serial.println(" ppm");
  #endif

  // Store the value
  mqArray[int(mqArray[0])] = value;
  /*
  Serial.print(ppmArray[0]);
  Serial.print(": ");
  Serial.println(ppmArray[int(ppmArray[0])]);
  */
  mqArray[0]++;
  if (int(mqArray[0]) > mqArrayLength-1) {
    mqArray[0]=1;
  }
  if (validArrayData < mqArrayLength-1) {
    validArrayData ++;
  }

  // Compute rolling average
  float total = 0;
  for (int i = 1; i < validArrayData+1; i++) {
    total = total + mqArray[i];
  }
  float averageValue = total/validArrayData;
  Serial.print("[readMQ135Sensor]     ");
  if (validArrayData < 10) Serial.print(" ");
  Serial.print("Rolling Average [");
  Serial.print(validArrayData);
  Serial.print("] : ");
  Serial.print(averageValue);
  Serial.println(" ppm");
  mqEco2 = (uint16_t)averageValue;
}

void sendMessage() {
/*
 * The necessary payload content must be set by the relevant sensor method(s).
 * At this point, we assume that everything is ready to go, the Packet Handler having
 * assembled what it has in the nominated [packetType] format.
 */

// Only do this if you want to see what's being sent
// packet.hexDump();    // Hex dump
// packet.serialOut();  // Plain English

  int totalByteCount = packet.packetByteCount();

  Serial.println("[sendMessage] Sending packet...");
  neoPixel(0,32,0);   // NeoPixel [low intensity] GREEN
  Radio.Send((uint8_t *)packet.byteStream(), packet.packetByteCount());
  neoPixel(0,0,0);    // NeoPixel OFF
  Serial.println("[sendMessage] Packet sent");
  Serial.println();
//  resetWatchdogTimer();
}

void neoPixel(uint8_t red, uint8_t green, uint8_t blue) {
	neo.begin();                                        // Initialise RGB strip object
	neo.clear();                                        // Set all pixel 'off'
	neo.setPixelColor(0, neo.Color(red, green, blue));  // The first parameter is the pixel index, and we only have one
	neo.show();                                         // Send the updated pixel colors to the hardware.
}
